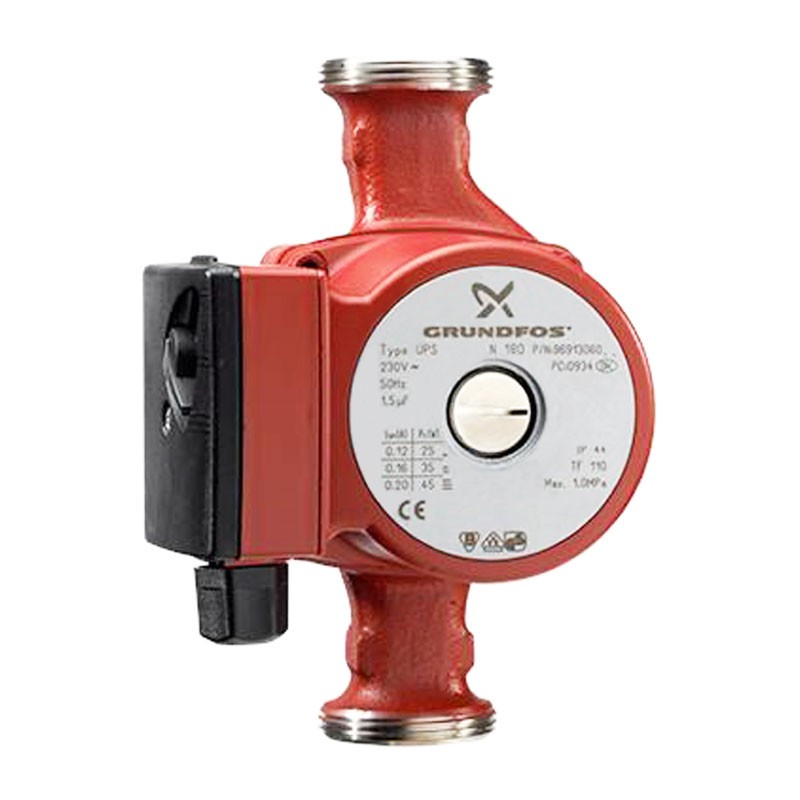

Wet rotor circulator pump Grundfos UPS 20-60 N 150 96913106
GRU 96913106
5700313544523
Wet rotor circulator pump Grundfos UPS 20-60 N 150, Pipe connection G 1 1/4, Working pressure PN 10, Centre distance 150 mm. Suitable for:
- Heating in commercial buildings
- Hot water recirculation for domestic use.
Grundfos UP, UPS N circulators have a corrosion-free stainless steel pump housing and are recommended for domestic hot water recirculation and underfloor heating systems. UP, UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is normally required.
Wet rotor circulator pump Grundfos UPS 20-60 N 150 96913106
€446.95
Tax included
€446.95
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
The pump is of the wet rotor separator type, i.e. pump and motor form a single body with no mechanical seal and with only two seals. The bearings are lubricated by the same pumped liquid.
The pump is equipped with a 3-step speed selector The pump is characterized by:
- Ceramic seal and radial bearings
- Graphite thrust bearing
- Separator sleeve and bearing support in ac.
PHASE:
- Stainless steel
- Wear resistant impeller (MATIM)
- Stainless steel pump body
- The motor is 1-phase asynchronous type and does not require external protection.
LIQUID
- Pumped liquid: Water
- Liquid temperature range: -25 ... 110 °C
- Liquid temperature during operation: 60 °C
- Density: 983.2 kg/m³.
TECHNICAL DATA
- Class TF: 110
- Approvals on the label: CE,EAC,WEEE.
MATERIAL:
- Pump body: Stainless steel DIN W.-Nr. 1.4301
- Impeller: Composite, PES/PP.
INSTALLATION:
- Max ambient temperature with liquid at 80 °C: 40 °C
- Max operating pressure: 10 bar
- Pipe connection: G 1 1/4
- Working pressure: PN 10

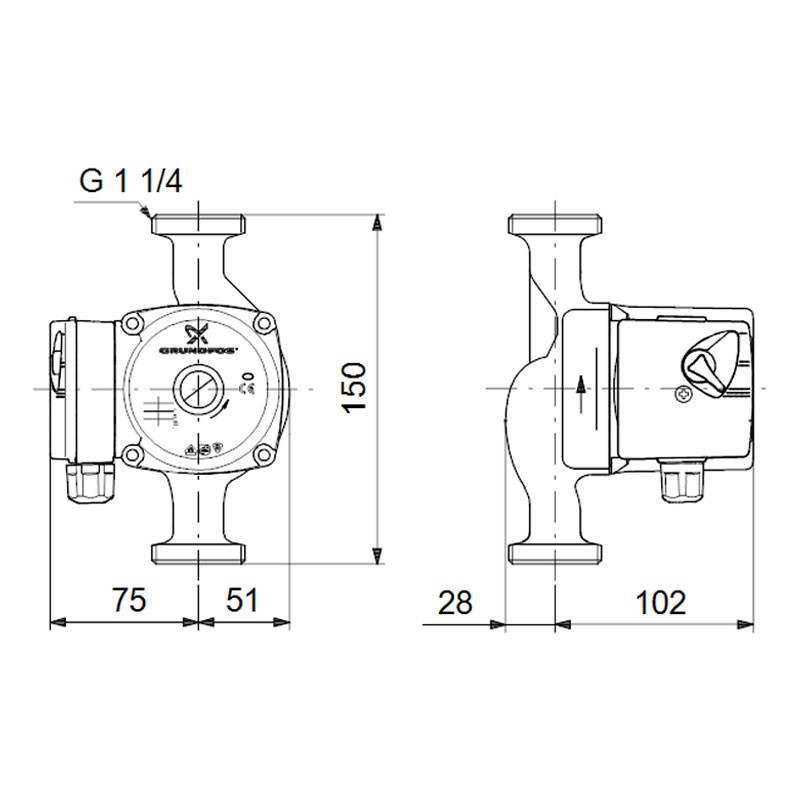

- Centre distance: 150 mm.
ELECTRICAL DATA
- Power consumption at speed 1: 50 W
- Power consumption at speed 2: 60 W
- Max power consumption: 70 W
- Mains frequency: 50 Hz
- Nominal voltage: 1 x 230 V
- Current at speed 1: 0.22 A
- Current at speed 2: 0.27 A
- Current at speed 3: 0.3 A
- Capacitor capacity - running: 2.5 µF
- Protection class (IEC 34-5): IP44
- Insulation class (IEC 85): F.
OTHER
- Net weight: 2.8 kg
- Gross weight: 3 kg
- Package volume: 0.004 m³.
Data sheet
- Type: Circulatory
- Model: Wet rotor
