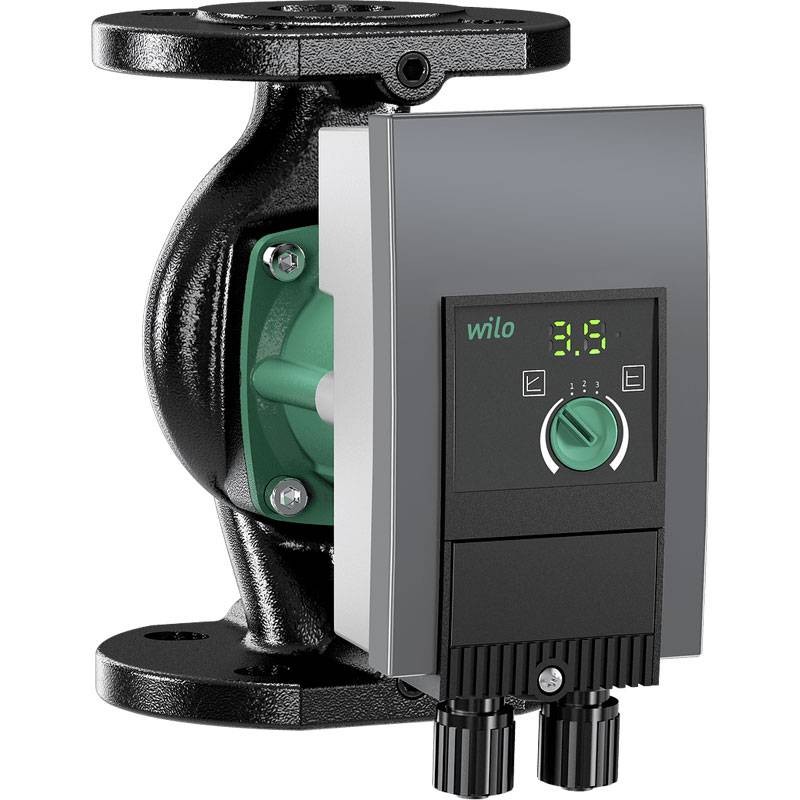

Wet rotor circulation pump Wilo YONOS MAXO 65/0.5-16 DN 65 340mm 2120655

Wilo
Wilo
WIL 2120655 4048482407920

Wilo YONOS MAXO 65/0.5-16 wet rotor circulation pump, synchronous motor according to ECM technology and integrated power regulation for modulating differential pressure control. Can be used in all heating, ventilation and air conditioning applications:


  • Mains power supply 1~230 V ±10%, 50/60 Hz
  • Rated power P2 1200W
  • Min speed 800 1/min
  • Speed max 3400 1/min
  • Power consumption (min) P1 min 40W
  • Power consumption P1 max 1450 W
  • Pipe connection on the pressure side DN 65
  • Pipe connection on the suction side DN 65
  • Construction length l0 340 mm

Request info about this product

Wet rotor circulation pump Wilo YONOS MAXO 65/0.5-16 DN 65 340mm 2120655

€2,068.87 Tax included
€2,068.87

Wet rotor circulation pump Wilo YONOS MAXO 65/0.5-16 DN 65 340mm 2120655

€2,068.87
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 1
Altre disponibilità dal produttore
qty

Wet rotor circulation pump Wilo YONOS MAXO 65/0.5-16 DN 65 340mm 2120655

€2,068.87

Buy it within and receive it from Tuesday, 9 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Standard with:

  • Preselectable control modes for optimal load matching: ?p-c (constant differential pressure), ?p-v (variable differential pressure)
  • 3 speed stages (n = constant)
  • LED indicator for setting the delivery value and displaying error messages
  • Electrical connection with Wilo connector
  • Error signal and contact for cumulative block signaling

Hydraulic data:

  • Maximum operating pressure PN 10 bar
  • Head H max 0.0 m Flow Q max 49.0 m³/h
  • Minimum inlet height at 50 °C 7 m
  • Minimum inlet height at 95 °C 15 m
  • Minimum inlet height at 110 °C 23 m
  • Fluid temperature min. Tmin -20 °C
  • Max. fluid temperature Tmax 110 °C
  • Min ambient temperature. Tmin -20 °C
  • Ambient temperature max. Tmax 40 °C

Motor data:

  • IEE energy efficiency index 0.20
  • Mains power supply 1~230 V ±10%, 50/60 Hz
  • Rated current IN 0.3 A
  • Rated current IN 6.4 A
  • Rated power P2 1200 W
  • Min. speed nmin 800 1/min
  • Max speed nmax 3400 1/min
  • Power consumption (min) P1 min 40 W
  • Power consumption P1 max 1450 W
  • Electromagnetic noise emission EN 61800-3;2004+A1;2012 / residential environment (C1)
  • Interference immunity EN 61800-3;2004+A1;2012 / industrial environment (C2)
  • Cable gland 2 x M20x1.5
  • Insulation class F
  • Degree of protection IPX4D

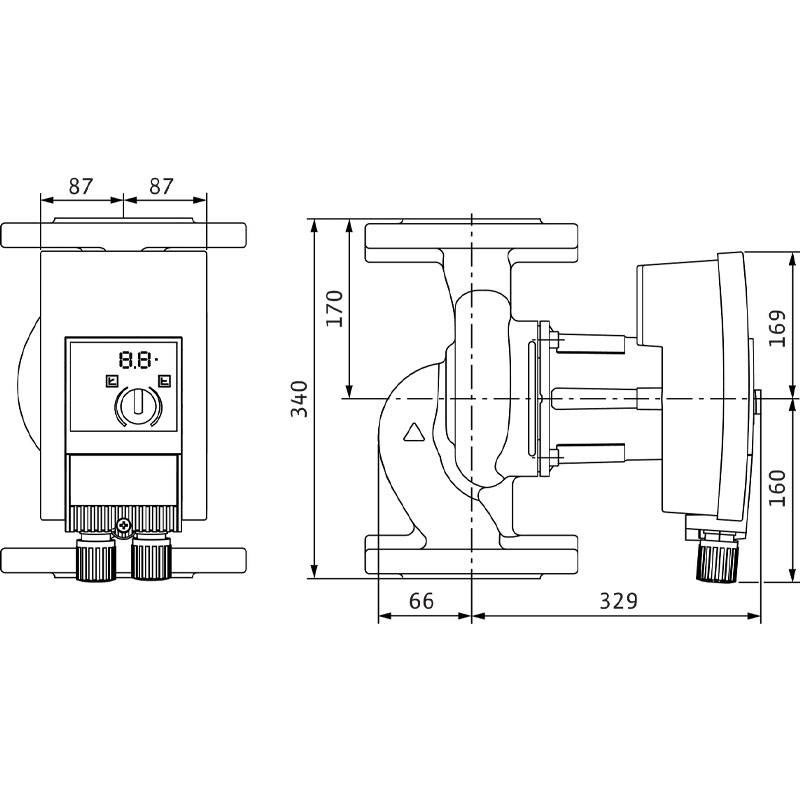

Mounting dimension:

  • Pipe fitting on the pressure side DN 65
  • Pipe connection on the suction side DN 65
  • Construction length l0 340 mm


Materials:

  • Pump body Grey cast iron
  • Impeller PP-LGF50
  • Shaft Stainless steel
  • Bearing material Graphite

There are no reviews

Data sheet

Type:
Circulatory
Model:
Wet rotor
