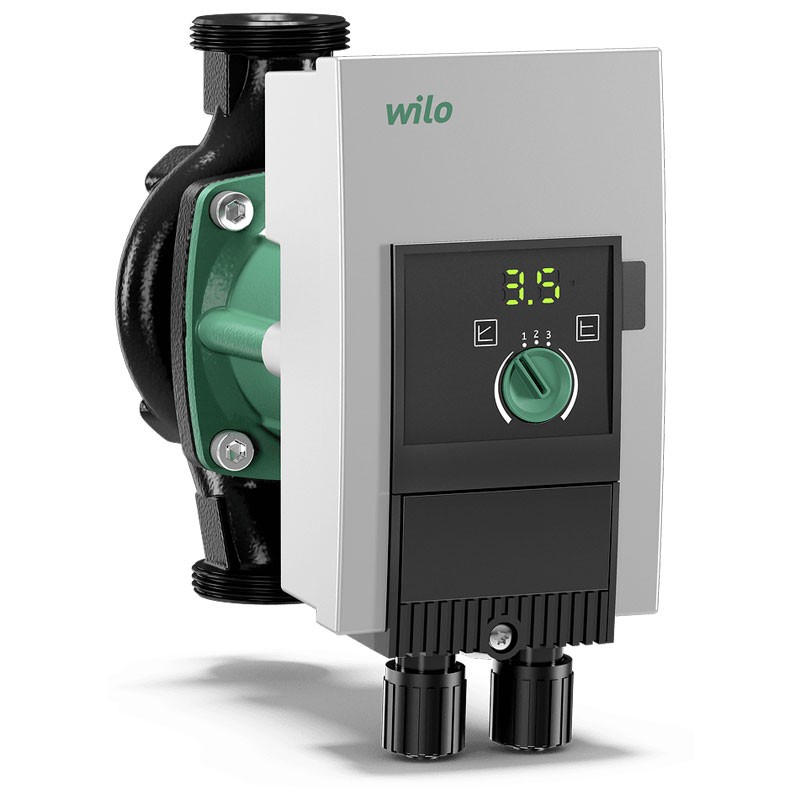

Wilo Maxo 25/0.5-10 PN 10 G 1/2 180mm wet rotor circulator pump 2120640
WIL 2120640
4048482235875
Wilo MAXO 25/0.5-10 PN 10 wet rotor circulator pump:
- Pipe fitting on the pressure side G 1½
- Pipe connection on the suction side G 1½

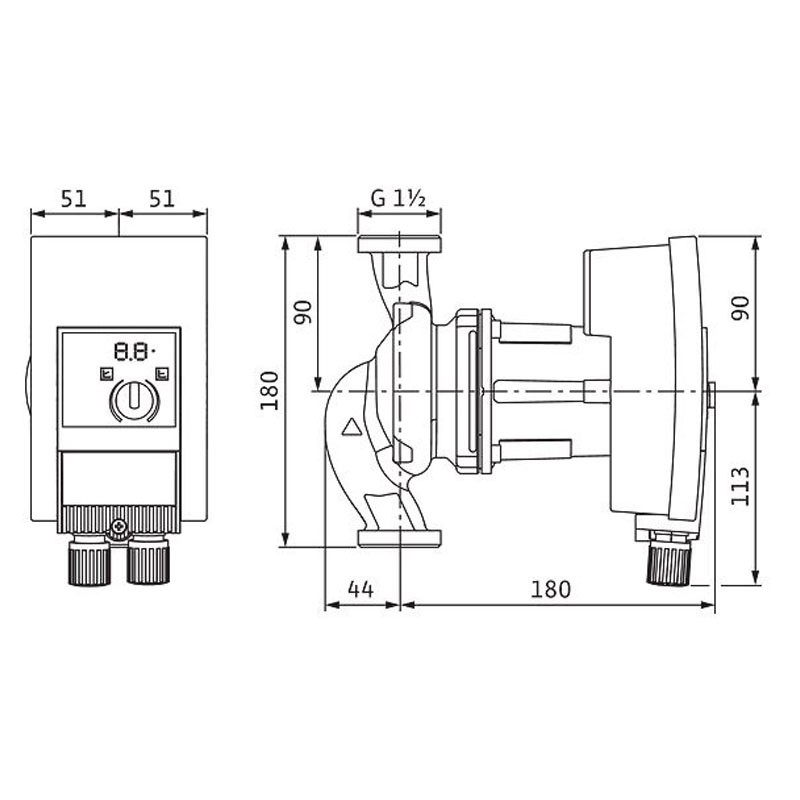

- Construction length l0 180 mm
- Pump body Cast iron
- Impeller EPP/PS-GF30
- Shaft Stainless steel
- Bearing material Graphite
Wilo Maxo 25/0.5-10 PN 10 G 1/2 180mm wet rotor circulator pump 2120640
€606.18
Tax included
€606.18
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Electronically controlled Yonos MAXO Wilo high-efficiency pump.
Circulation pump with wet rotor, synchronous motor according to ECM technology and integrated power control for modulating differential pressure control. Can be used in all heating, ventilation and air-conditioning applications.
Standard with:
- Preselectable control modes for optimum load adaptation: ?p-c (constant differential pressure), ?p-v (variable differential pressure) 3 speed stages (n = constant)
- LED indicator for setting the delivery value and displaying error messages
- Electrical connection with Wilo connector
- Error signal and contact for cumulative blocking signal
With flanged pumps - versions with flange:
- Standard version for pumps in DN 32 to DN 65: Combined flange PN 6/10 (PN 16 flange according to EN 1092-2) for PN 6 and PN 16 counterflanges
- Standard version for DN 80 / DN 100 pumps: PN 6 flange (sized PN 16 according to EN 1092-2) for PN 6 counter flange.
Motor data:
- Energy efficiency index IEE 0.20
- Mains power supply 1~230 V ±10%, 50/60 Hz
- Nominal current IN 0.1 A
- Nominal current IN 1.5 A
- Rated power P2 140 W
- Min. speed nmin 1000 1/min
- Max. speed nmax 4450 1/min
- Power consumption (min) P1 min 5 W
- Power consumption P1 max 190 W
- Electromagnetic interference emission EN 61800-3;2004+A1;2012 / residential environment (C1)
- Interference immunity EN 61800-3;2004+A1;2012 / industrial environment (C2)
- Cable gland 2 x M20x1.5
- Insulation class F
- Degree of protection IPX4D
Hydraulic data
- Max working pressure PN 10 bar
- Head H max 10,0 m
- Delivery Q max 8,8 m³/h
- Minimum inlet height at 50 °C 3 m
- Minimum inlet height at 95 °C 10 m
- Minimum inlet height at 110 °C 16 m
- Min. fluid temperature Tmin -20 °C
- Max. fluid temperature Tmax 110 °C
- Min. ambient temperature Tmin -20 °C
- Max. ambient temperature Tmax 40 °C
There are no reviews
Data sheet
- Type: Circulatory
- Version: Single
- Model: Wet rotor
