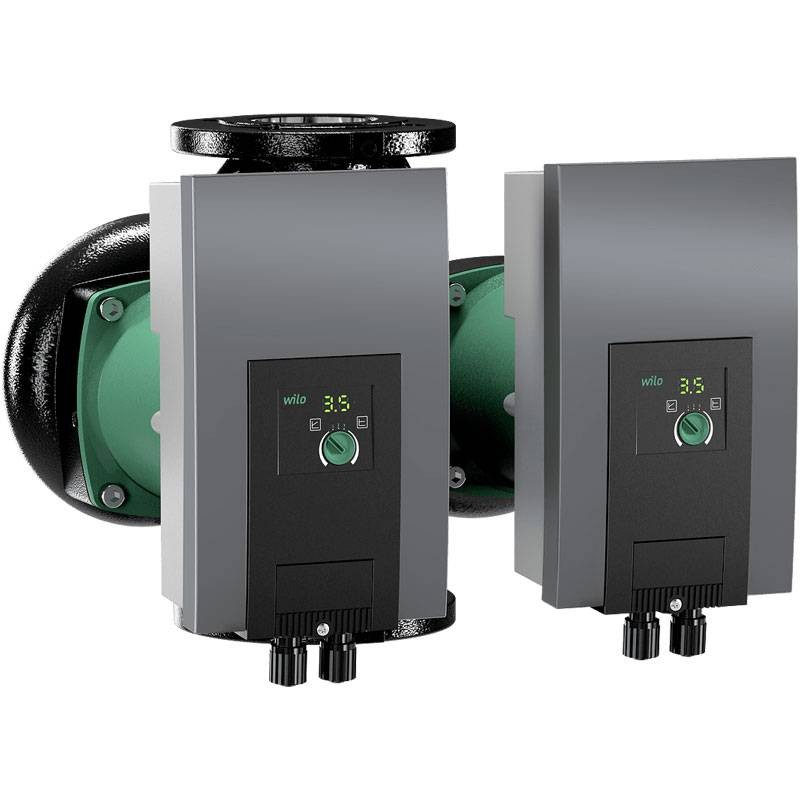

Dual wet rotor pump Wilo YONOS MAXO-D 40/0.5-16 DN 40 250mm2120666

Brand: Wilo

Cod: WIL 2120666 EAN: 4048482407999

Twin circulator Twin wet rotor pump Wilo, YONOS MAXO-D 40/0.5-16 synchronous motor according to ECM technology and integrated power regulation for modulating differential pressure control. Can be used in all heating, ventilation and air conditioning applications:

Mains power supply 1~230 V ±10%, 50/60 Hz
Rated power P2 650 W
Min speed 800 1/min
Speed max 3500 1/min
Insulation class F
Degree of protection IPX4D
Pipe connection on the pressure side DN 40
Pipe connection on the suction side DN 40

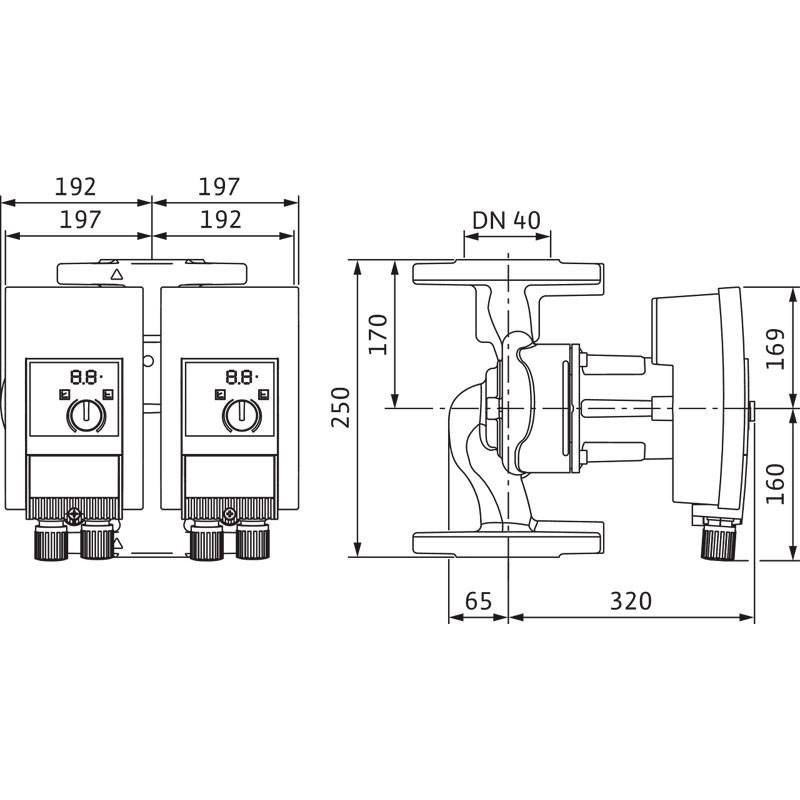

Construction length l0 250 mm

Dual wet rotor pump Wilo YONOS MAXO-D 40/0.5-16 DN 40 250mm2120666

€2,929.89 Tax included

€2,929.89

Dual wet rotor pump Wilo YONOS MAXO-D 40/0.5-16 DN 40 250mm2120666

€2,929.89
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 1

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Each pump can be operated in single operation (main/standby operation). To enable automatic exchange of pumps in the event of a blockage, an appropriate switchgear is required on site.

Standard with:

Preselectable control modes for optimal load matching: ?p-c (constant differential pressure), ?p-v (variable differential pressure)
3 speed stages (n = constant)
LED indicator for setpoint setting and error message display
Electrical connection with Wilo connector
Error signal and contact for cumulative block signal

Hydraulic data:

Maximum operating pressure PN 10 bar
Head H max 0.0 m
Flow Q max 24.3 m³/h
Minimum inlet height at 50 °C 7 m
Minimum inlet height at 95 °C 15 m
Minimum inlet height at 110 °C 23 m
Fluid temperature min. Tmin -20 °C
Max. fluid temperature Tmax 110 °C
Min ambient temperature. Tmin -20 °C
Ambient temperature max. Tmax 40 °C

Motor data:

IEE energy efficiency index 0.23
Mains power supply 1~230 V ±10%, 50/60 Hz
Rated current IN 0.27 A
Rated current IN 3.5 A
Rated power P2 650 W
Min. speed nmin 800 1/min
Max speed nmax 3500 1/min
Power consumption (min) P1 min 30 W
Power consumption P1 max 800 W
Electromagnetic noise emission EN 61800-3;2004+A1;2012 / residential environment (C1)
Interference immunity EN 61800-3;2004+A1;2012 / industrial environment (C2)
Cable gland 2 x M20x1.5
Insulation class F
Degree of protection IPX4D
