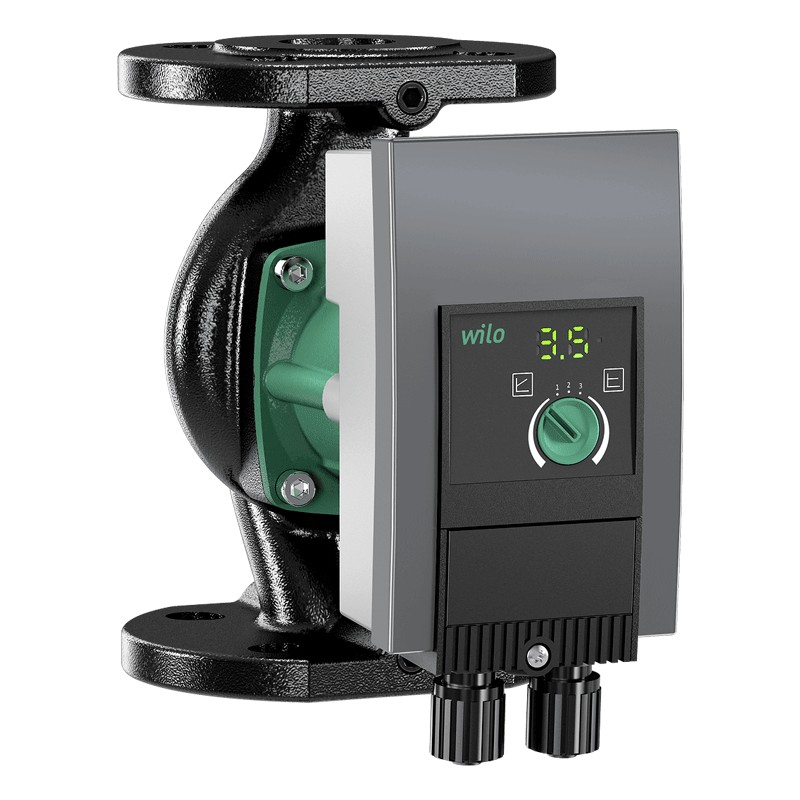

Wet rotor circulation pump Wilo YONOS MAXO 40/0.5-16 DN 40 250mm 2120648
WIL 2120648
4048482407593
Wilo YONOS MAXO 40/0.5-16 wet rotor circulation pump:
- Maximum operating pressure PN 10 bar
- Head H max 16.0 m
- Delivery Q max 28.0 m³/h
- Pipe connection on the pressure side DN 40
- Pipe connection on suction side DN 40
- Construction length l0 250 mm
Wet rotor circulation pump Wilo YONOS MAXO 40/0.5-16 DN 40 250mm 2120648
€1,584.82
Tax included
€1,584.82
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Hydraulic data:
- Minimum inlet height at 50 °C 7 m
- Minimum inlet height at 95 °C 15 m
- Minimum inlet height at 110 °C 23 m
- Fluid temperature min. Tmin -20 °C
- Max. fluid temperature Tmax 110 °C
- Min ambient temperature. Tmin -20 °C
- Ambient temperature max. Tmax 40 °C
Materials:
- 5.1301 pump housing, EN-GJL-250
- Impeller EPP/PS-GF30
- Shaft Stainless steel
- Bearing material Graphite
Motor data:
- Energy efficiency index IEE 0.20
- Mains power supply 1~230 V ±10%, 50/60 Hz
- Rated current IN 0.27 A
- Rated current IN 3.5 A
- Rated power P2 650 W
- Min. speed nmin 800 1/min
- Max speed nmax 3500 1/min
- Power consumption (min) P1 min 30 W
- Power consumption P1 max 800 W
- Electromagnetic noise emission EN 61800-3;2004+A1;2012 / residential environment (C1)
- Interference immunity EN 61800-3;2004+A1;2012 / industrial environment (C2)
- Cable gland 2 x M20x1.5
- Insulation class F
- IPX4D Degree of Protection
There are no reviews
Data sheet
- Type: Circulatory
- Version: Single
- Model: Wet rotor
