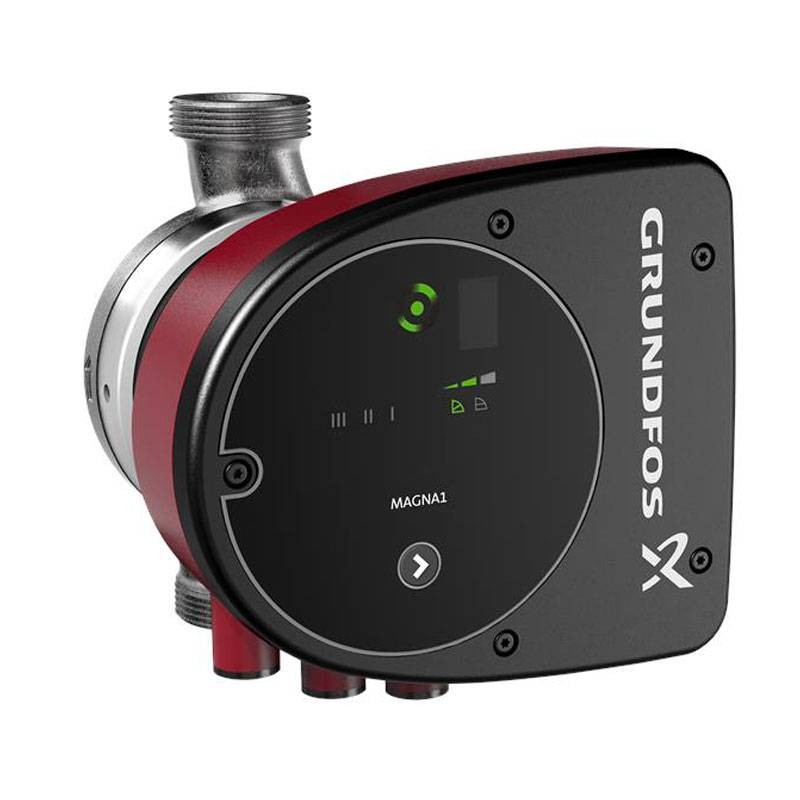

Grundfos MAGNA1 32-100 N electronic wet rotor circulator 99221256
GRU 99221256
5712608942297
Grundfos MAGNA1 32-100 N electronic wet rotor circulator is the stainless steel variant for applications that require it (e.g., domestic hot water). With MAGNA1 the work is done intuitively and efficiently.
Suitable for:
- Air conditioning - Commercial buildings
- Heating in commercial buildings
- Hot water recirculation for domestic use
- Max operating pressure 10 bar
- Pipe connection G 2"
- Operating pressure PN 10
- Centre distance 180 mm
- Ambient temperature limit 0/+40 °C
Grundfos MAGNA1 32-100 N electronic wet rotor circulator 99221256
€1,137.57
Tax included
€1,137.57
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Features:
Technical:
- Max head 100 dm
- Class TF 110
- Approvals CE,VDE,EAC,MOROCCO,UKCA,TSERCM,UkrSEPRO
- Drinking water approvals WRAS,ACS,UBA
- Model C
Material:
- Pump body Stainless steel - EN 1.4308 - ASTM 351 CF8
- Impeller PES 30%GF
Installation:
- Ambient temperature limit 0/+40 °C
- Max operating pressure 10 bar
- Pipe connection G 2"
- Operating pressure PN 10
- Centre distance 180 mm
Liquid:
- Pumped liquid Water
- Liquid temperature range -10 ... 110 °C
- Liquid temperature during operation 60°C
- Density 983.2 kg/m³
Electrical data:
- Ingr. pot. - P1 8 .. 175 W
- Mains frequency 50/60 Hz
- Rated voltage
- V 1x230 V
- Maximum current consumption 0.08 ... 1.41 A
- Protection class (IEC 34-5) X4D
- Insulation class (IEC 85) F
There are no reviews
Data sheet
- Type: Circulatory
- Version: Single
- Model: Wet rotor
