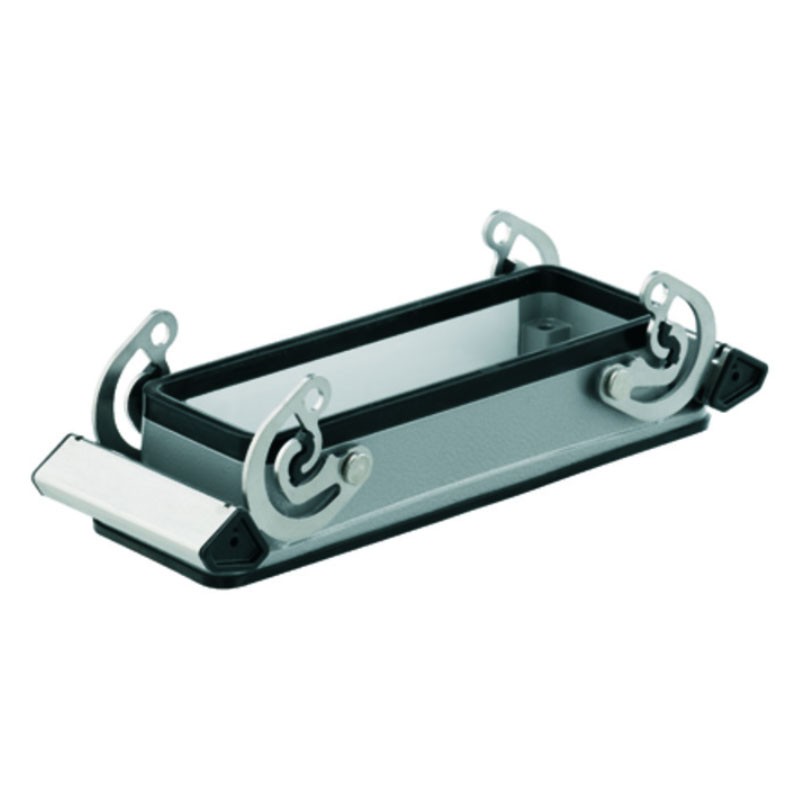

Weidmuller cap 24P through-base with hook 1212400000
WEI 1212400000
4008190083939
Weidmuller shell, with the following characteristics:
- Temperature limit values: -40 °C/+125 °C
- EMC enclosures: no
- Degree of protection IP65 (in plugged-in condition)
- Housing base material: die-cast aluminum
- Locking element material: steel, stainless
- Surface: powder coating
- Suitable for ModuPlug®: Yes
- BG 8
Weidmuller cap 24P through-base with hook 1212400000
€11.18
Tax included
€11.18
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 152
: 5
Pay in installments with Klarna
PLEASENOTE: When mounting the housings, make sure the flat gasket is properly in place.
Other Specifications:
- Color (RAL): gray RAL 7035
- Enclosure execution: through-base
- Locking system execution: transverse hook at bottom, transverse hook not replaceable
- Shape standard
- Size 8
- NBR gasket
- Upper part/lower part/cover: lower part
- Type: through-base (louver mounted)
- Hook version: transverse hook
- ROHS: compliant
- UL File Number Search: E92202
Dimensions and weight:
- Vertical position 29.3 mm
- Height (inches) 1.154 inch
- Width 55 mm
- Width (inches) 2.165 inch
- Fixing height 32 mm
- Fixing width 130 mm
- Net weight 174 grams
Other dimensions:
- Case Height B 29.5 mm
- Socket height B1 5.3 mm
- Distance between holes length A2 130 mm
- Housing width C 43 mm
- Socket width C1 47 mm
- Length, housings 120 mm
