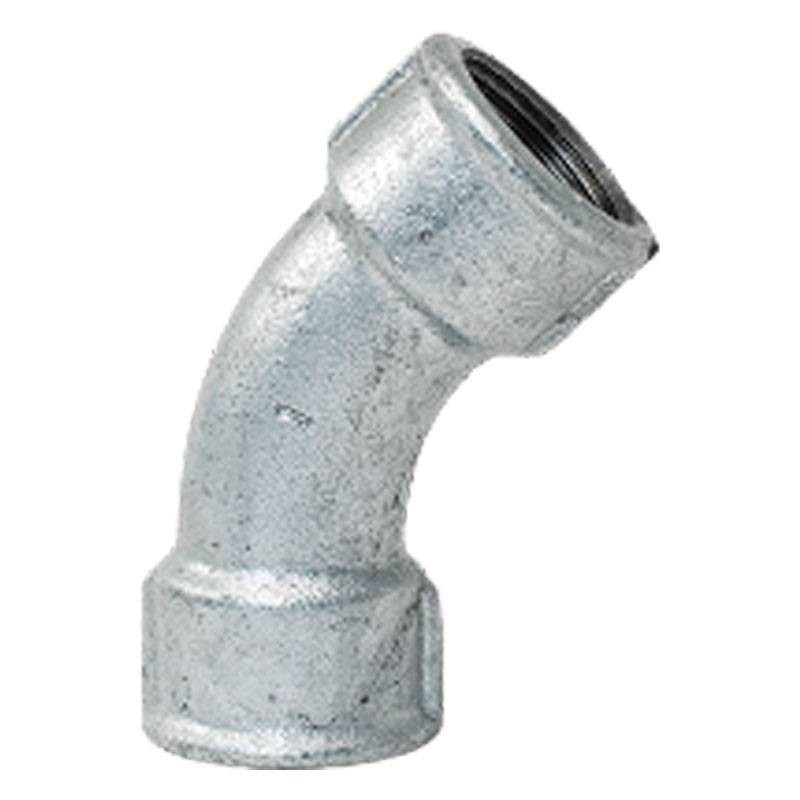

45 Degree Bend for Cast Iron Pipe Gebo Female/Female 1 1/4 41-7G

Brand: Gebo

Cod: GBO 41-7G EAN: 4019576080749

45-degree bend for Gebo Series 41 cast iron pipes with the following features:

Connection: Female/Female
Fittings: 1 1/4 inch
Material: Cast iron

Suitable for conveying compressed air, water, combustible gases, hydrocarbons and others, under the indicated pressure and temperature limits.

45 Degree Bend for Cast Iron Pipe Gebo Female/Female 1 1/4 41-7G

€5.65 Tax included

€5.65

45 Degree Bend for Cast Iron Pipe Gebo Female/Female 1 1/4 41-7G

€5.65
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 25

: 13

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

GEBO threaded fittings comply with UNI EN 10242 drawing symbol A, which specifies the characteristics of threaded malleable cast iron fittings. As prescribed by the mentioned standard, GEBO malleable cast iron threaded fittings are suitable for conveying compressed air, water, combustible gases, hydrocarbons, and others, under the indicated pressure and temperature limits.

Applications:

Minimum service temperature: 20 °C, 25 bar
Working pressure for temperatures between 20 °C and 120 °C: 25 bar
Working pressure for temperatures between 120 °C and 300 °C: 20 - 25 bar

GEBO threaded fittings are manufactured from malleable cast iron and designed according to the drawing symbol specified in EN 10242 as A, the quality grade of which is known as EN-GJMB-350-10.

This implies that the following results are obtained in mechanical tests on 12 mm diameter specimens:

Tensile strength (minimum value) 350N/ mm2 (35 Kg/mm2)
Yield strength 0.2 % (minimum value) 200 N/mm2 (20 Kg/mm2)
Elongation (minimum value) 10 %
Brinell hardness (maximum value) 150 HB

In order to ensure that there are no defects in the material that could cause leakage, the tightness of each GEBO fitting has been tested in accordance with the requirements of DIN EN 10242.

Galvanizing: GEBO threaded fittings are galvanized by immersion in a molten zinc bath, according to DIN EN 10242. The zinc coating is more than 500 g/m2, thus minimum average thickness of 70 microns. The thickness of the zinc layer and its adherence with the base surface guarantees our malleable cast iron fittings perfect corrosion protection over time.

Cleaning and Oiling: To remove residual iron shavings, oil, cutting and dirt collected during the mechanization process, GEBO fittings are cleaned and finally provided with corrosion protection.
