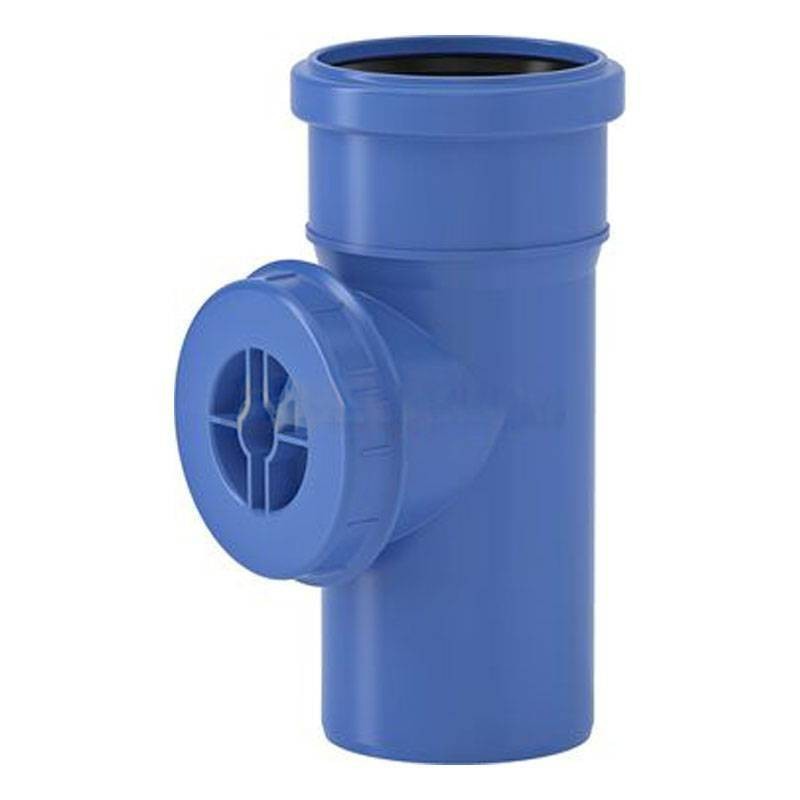

Inspection Pipe with Pipe cap Valsir Triplus Plug D 160 mm VS0650911
VAL VS0650911
8023857228443
Valsir Triplus PP Polypropylene Threaded Round Inspection Pipe for plug-in drain pipes with the following characteristics:
- Diameter: 160 mm
- Rated diameter: 150 mm
- Height: 125 mm

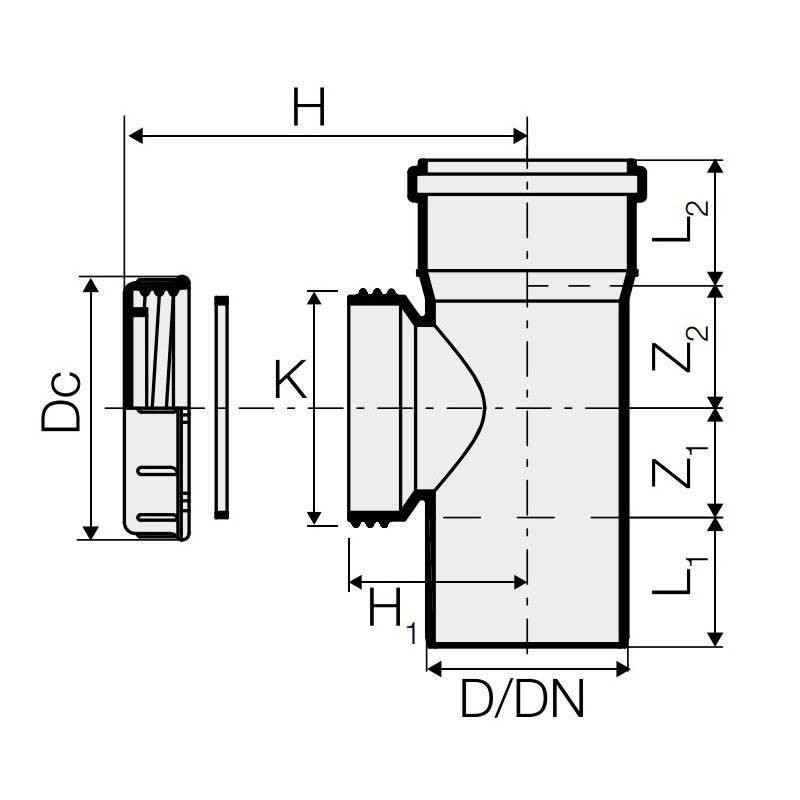

- Dimensions: 64x75x73x150x128x118 (Z1-L1-Z2-L2-DC-K-H1)
- Weight: 1.401 kg
Triplus piping consists of three layers of material that, when coupled together, allow for extremely high mechanical properties even at low temperatures and excellent acoustic performance.
Due to its performance it can be laid exposed inside technical cavities, and thanks to the range of diameters it is also an ideal solution for the construction of basement manifolds.
Inspection Pipe with Pipe cap Valsir Triplus Plug D 160 mm VS0650911
€36.47
Tax included
€36.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Triplus is the right compromise between acoustic performance and cost-effectiveness. It is a drainage system characterized by its blue coloring and composed of triple-layer pipes that provides acoustic performance of 12 dB(A) at a flow rate of 2 liters/second. Thanks to its performance, it can be laid exposed inside technical cavities, and thanks to the range of diameters it is also an ideal solution for the construction of basement manifolds.
Triplus is the plug-in system of triple-layer pipes, fittings and accessories industrialized, manufactured and patented by Valsir that meets these requirements while guaranteeing the levels of quietness of exhaust systems required by current legislative and regulatory regulations.
The intermediate layer is made from a patented mixture of polypropylene (PP) and mineral fillers (MF) such that it gives the Triplus system excellent mechanical characteristics at low (impact resistance down to -25°C) and high temperatures (up to 95°C). The Triplus drainage system can carry wastewater at temperatures with PH between 2 and 12, has high resistance to most common chemicals, and has an extremely smooth inner surface such that it prevents the accumulation of internal deposits in drainage networks.
Advantages:
- The socket coupling also does not require the use of harmful equipment, glues or solvents
- Resistance to discontinuous drains with temperatures up to 95°C. Resistance to temperatures as low as -25°C
- Noise levels of 12 dB(A) at a flow rate of 2 l/s (according to EN 14366 - certificate P-BA 227/2006)
- Pipes consisting of three layers of material coupled together
- Resistant to dissolved substances in civil and industrial drains
- Wide range of diameters from DN 32 mm to DN 250 mm and possibility of interconnection with other materials (cast iron, PE, PP, PVC)
There are no reviews
Data sheet
- Diameter:
- 160mm
- Type:
- Plug-in Inspection Pipes
- Model:
- Soundproofing
