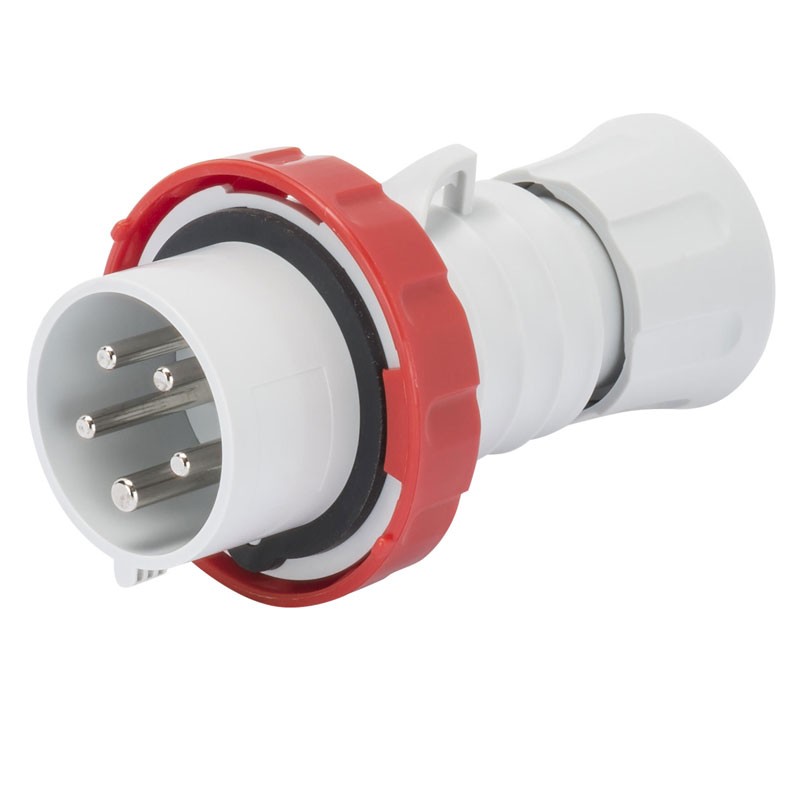

Gewiss mobile plug 3P+E+N 16A IP67 red 380V GW60031H
GEW GW60031H
8011564797086
Gewiss HP straight/mobile plug, with the following characteristics:
- Rated voltage: 380 - 415V
- Frequency: 50/60 Hz
- Rated current 16A
- Poles: 3P+T+N
- Degree of protection IP67
Gewiss mobile plug 3P+E+N 16A IP67 red 380V GW60031H
€11.83
Tax included
€11.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 319
: 28
Pay in installments with Klarna
Features:
- Gewiss Series
- Color: red
- Shock resistance IK09
- Reference h: 6
- Terminal clamping capacity: 1-2.5 mm² flexible cables - 1.5-4 mm² rigid cables
- Clamping capacity: 9.2-19.9 mm
- Operating temperature -25 +55 °C
- Wiring type: screw
- Material Type: Halogen free according to EN 60754-2
- Electrocod code: 2230
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations >5000
- Admissible overload: 22 A
- Breaking capacity at 1,1 Un: 20 A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (active parts) - 80 °C (passive parts)
- Ware number: 85366990
Conforme à mes attentes, le système de verrouillage semble adapté, je connaissais déjà la marque
conforme a quanto descritto .
Grazie mille per tutto quello che mi avete offerto
Data sheet
- Type: CEE plugs
- Voltage: 380/415VAC
- Poles: 3P+N+T
- Degree of protection: IP67
- Installation: Furniture
- Amps: 16A
