Isolator and spacer BM M6 H45 polyester red QHEP04506
BMM QHEP04506
8013629262287
Red polyester insulator and spacer with the following features:
- Thread: M6
- Tightening torque: 10 Nm
- AC voltage: 1.8 kV
- DC voltage: 2.5 kV
- Tensile strength: 990 daN
- Flexural strength: 310 daN
- Insulation material: red polyester and glass fiber
- Insert material: galvanized steel threaded according to ISO standards
- Self-extinguishing level: UL 94 V0
- Operating temperature: -40 °C to +135 °C

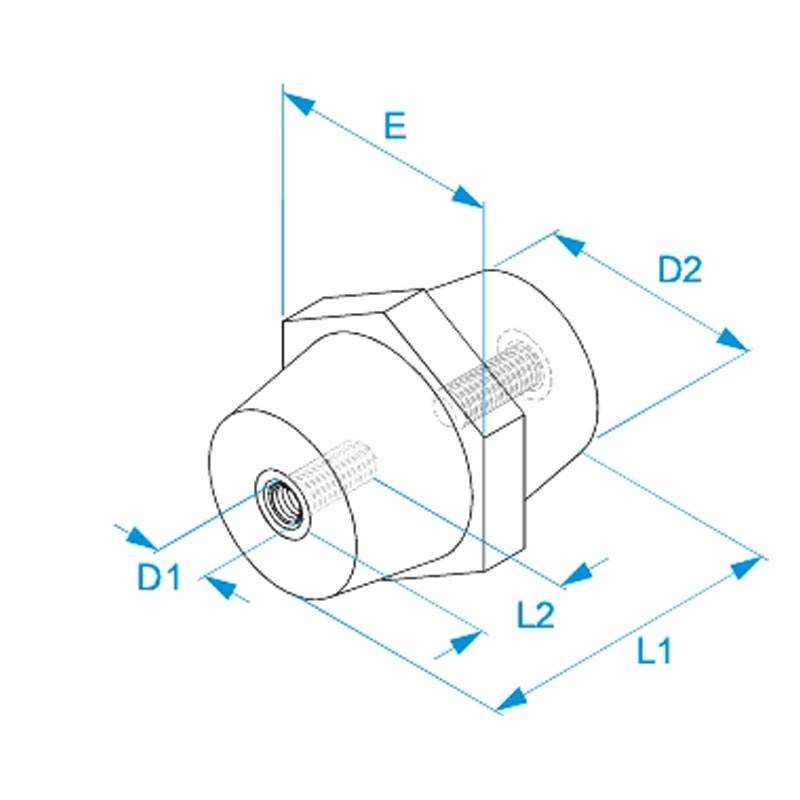

- Dimensions: 45x12x40x32 mm (L1-L2-key E-D2)
Ideal for: support of threaded and drilled copper bars.
Isolator and spacer BM M6 H45 polyester red QHEP04506
€2.71
Tax included
€2.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 199
: 2
There are no reviews
Data sheet
- Type:
- Isolators
