Isolator and spacer BM M8 H45 polyester red QHEP04508

Bm
BMM QHEP04508 8013629262294

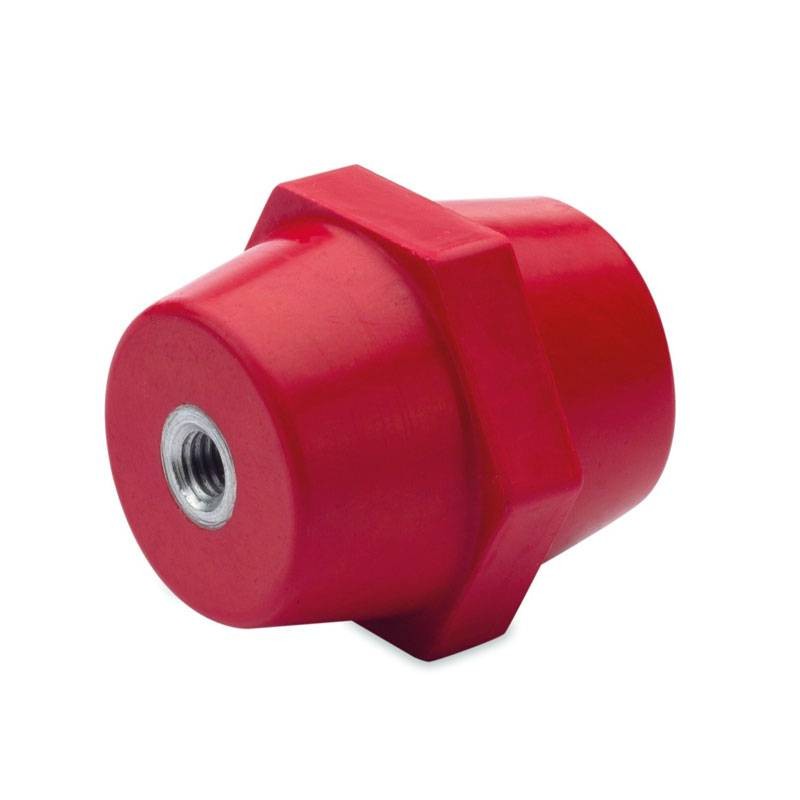

Red polyester insulator and spacer with the following features:


  • Thread: M8
  • Tightening torque: 20 Nm
  • AC voltage: 1.8 kV
  • DC voltage: 2.5 kV
  • Tensile strength: 1100 daN
  • Flexural strength: 345 daN
  • Insulation material: red polyester and glass fiber
  • Insert material: galvanized steel threaded according to ISO standards
  • Self-extinguishing level: UL 94 V0
  • Operating temperature: -40 °C to +135 °C

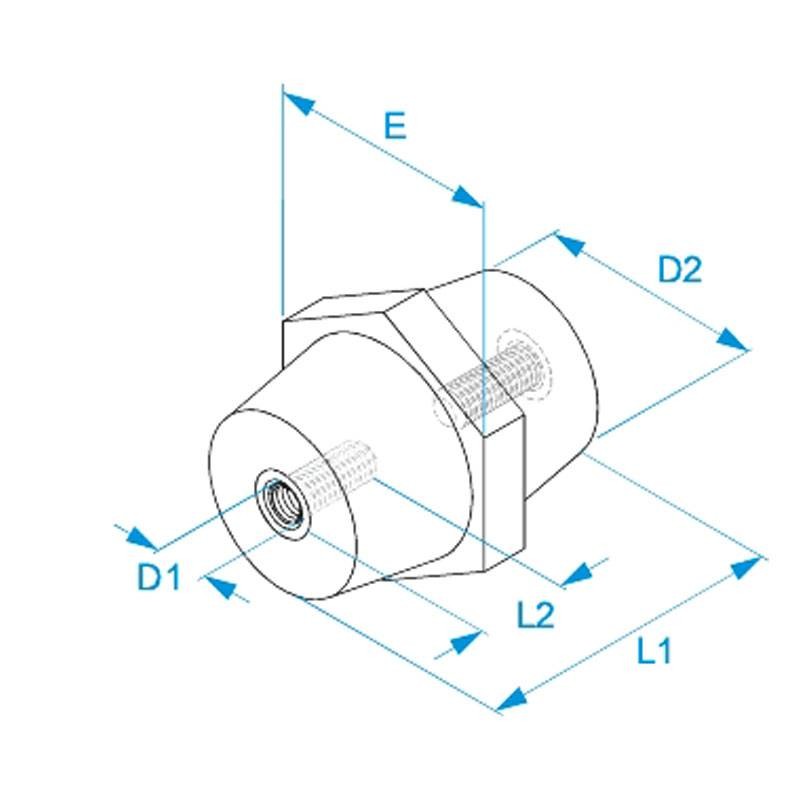

  • Dimensions: 45x12x40x32 mm (L1-L2-key E-D2)


Ideal for: support of threaded and drilled copper bars.
