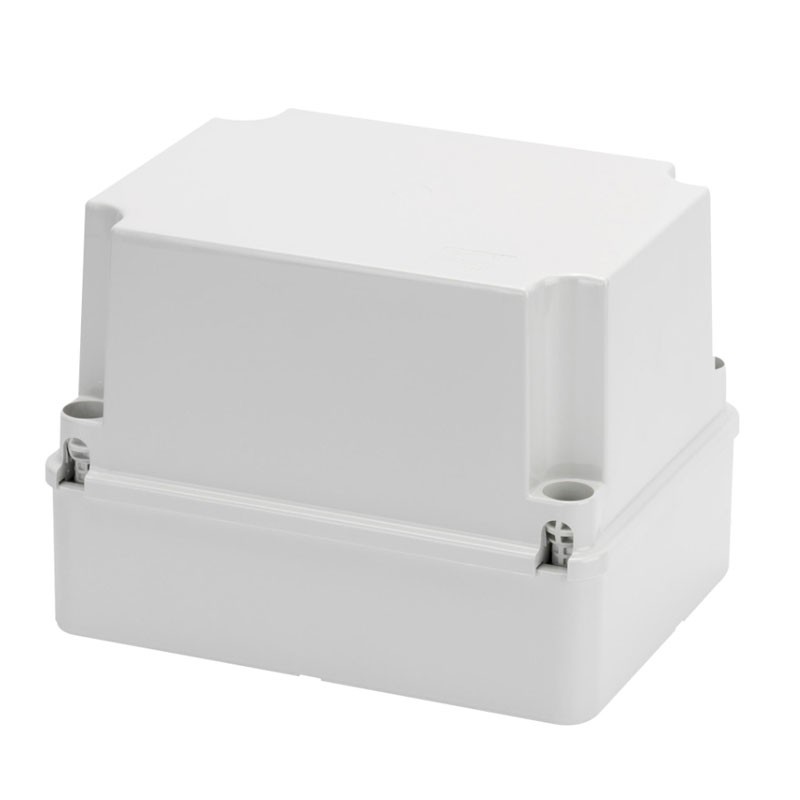

Gewiss external box with high lid IP56 190x140x140 GW44417
GEW GW44417
8011564014046
Gewiss junction box, with the following characteristics:
- Suitable for electrical and electronic equipment
- With high blind screw cover
- Degree of protection IP56
- Internal dimensions BxHxP (mm): 190x140x140
- Walls: smooth
- Color: grey RAL 7035
Accessories for restoring insulation GW44621, GW44622.
Gewiss external box with high lid IP56 190x140x140 GW44417
€30.18
Tax included
€30.18
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 32
Pay in installments with Klarna
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140)
- Material Technopolymer GWPLAST 120
- Impact resistance IK08
- Max. executable holes Ø: 37 mm
- Cover screws (no. and type): 4 hinged insulators that can be lead-sealed
- Application: Industrial applications
- Glow wire resistance 650 °C
- Temperature range: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod Code 02211
- Thermopressure with ball 110 °C
- Screw tightening torque: 1.8 Newton metres
- Ware number 85381000
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: High cover
- Degree of protection: IP56
- Model: Smooth wall
