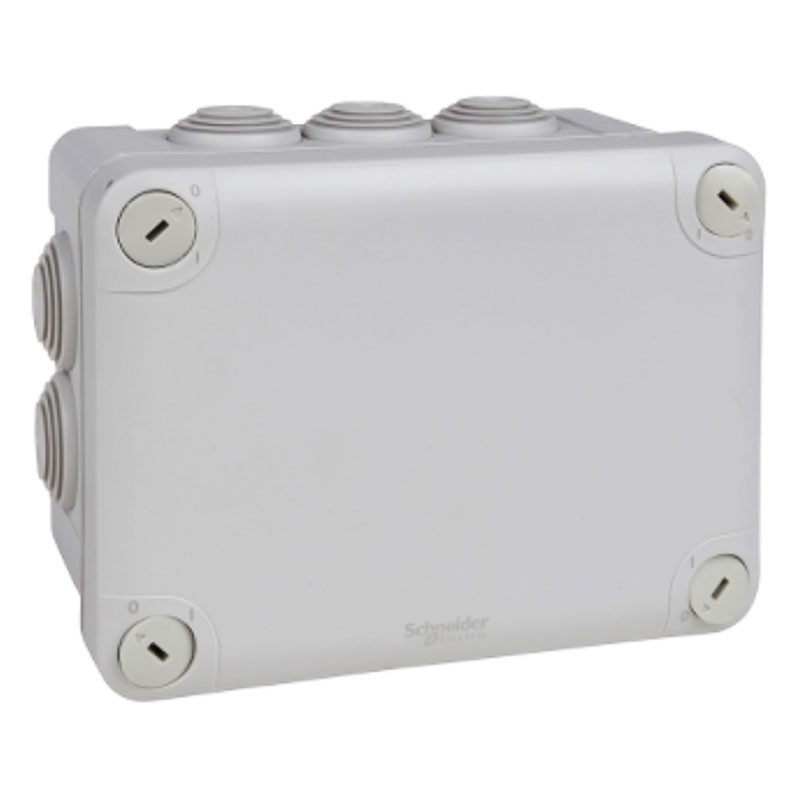

Schneider junction box IP55 150X105X80 with grommets ENN05007
SNR ENN05007
3295150050075
Schneider MUREVA junction box, with the following characteristics:
- Color: gray (RAL 7035)
- Surface mounting
- Cable entry: rubber seals
- Type of fixing: screw fixed: cover
- Internal dimensions: 150 x 105 x 80 mm
- Number of cable entries 10 diameter: 25 mm
Schneider junction box IP55 150X105X80 with grommets ENN05007
€8.34
Tax included
€8.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 386
: 3
Pay in installments with Klarna
Features:
- Schneider Series
- Electrical insulation class: class II according to IEC 536
- Operating temperature: -25 +40 °C
- Degree of protection IP55 in accordance with IEC 60529
- Degree of impact resistance IK07 according to EN 50102
- Glow wire temperature 750 °C
- Reference standards: EN 60670/ CE
Material: ABS
- PP (polypropylene): cover
- SBS (styrene butadiene styrene): sealing grommet
Dimensions:
- Height 85 mm
- Width 165 mm
- Depth 125 mm
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Standard
- Degree of protection: IP55
- Model: Waterproof with grommets
