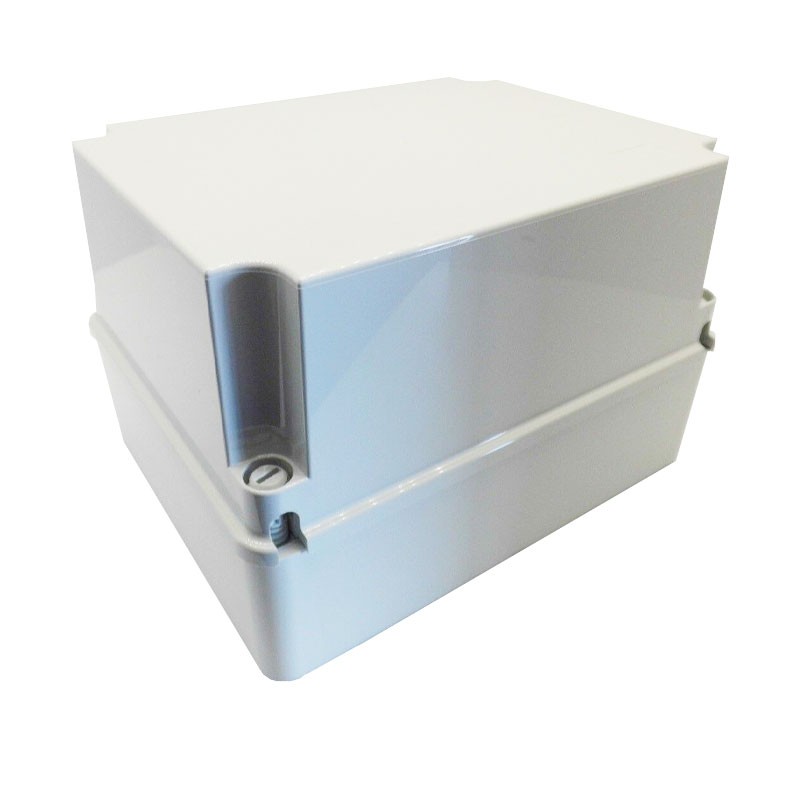

Gewiss external box with high lid IP56 240x190x160 GW44218
GEW GW44218
8011564013896
Gewiss junction box, with the following features:
- With screw cover
- Degree of protection IP56
- Internal dimensions BxHxP (mm) 240x190x160
- Smooth walls
- Color: grey RAL 7035
Accessories for restoring insulation GW44621, GW44622.
Gewiss external box with high lid IP56 240x190x160 GW44218
€28.06
Tax included
€28.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 98
: 19
Pay in installments with Klarna
Features:
- Gewiss Series
- Insulation class II (according to IEC 61140)
- Material Technopolymer GWPLAST 75
- Impact resistance IK08
- Max. diameter of executable holes: 37 mm
- Cover screws (no. and type) 4 hinged insulators that can be hinged
- Application: ordinary shunts
- Glow wire resistance 650 °C
- Working temperature: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 02211
- Thermopressure with ball 85 °C
- Screw tightening torque: 1.8 Newton metres
- Ware number 85381000
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: High cover
- Degree of protection: IP56
- Model: Smooth wall
