Gewiss external box with high lid IP56 300x220x180 GW44219
GEW GW44219
8011564013902
Gewiss junction box with high screw cover, with the following characteristics:

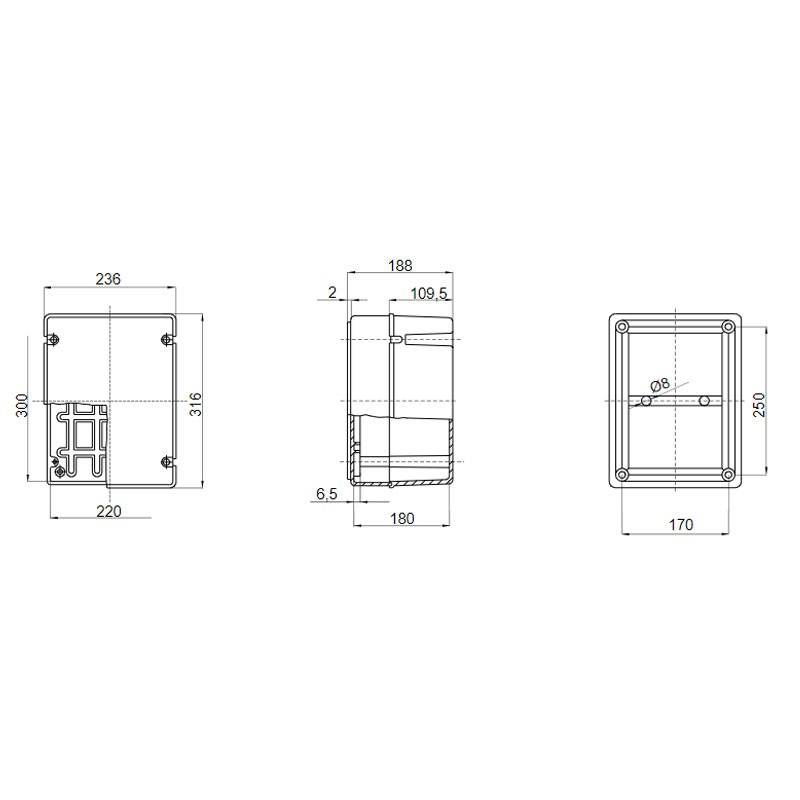

- Internal dimensions BxHxP (mm): 300x220x180
- IP protection IP56
- Cover: high screw
- Colour: grey RAL 7035
Accessories for restoring insulation GW44621, GW44622.
Gewiss external box with high lid IP56 300x220x180 GW44219
€47.94
Tax included
€47.94
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 78
: 9
Pay in installments with Klarna
Features:
- Gewiss Serie
- Insulation class: II (according to IEC 61140 standard)
- Material: Technopolymer GWPLAST 75
- Impact resistance: IK08
- Max. diameter of holes: 48 mm
- Cover screws (no. and type): 4 hinged insulators that can be lead-sealed
- Application: Ordinary junctions
- Glow wire resistance: 650 °C
- Temperature range: -25 +60 °C
- Material: Halogen free according to EN 60754-2
- Electrocod code: 02211
- Thermopressure with ball: 85 °C
- Screw tightening torque: 1,8 Newton/meter
- Walls: Smooth
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: High cover
- Degree of protection: IP56
- Model: Smooth wall
