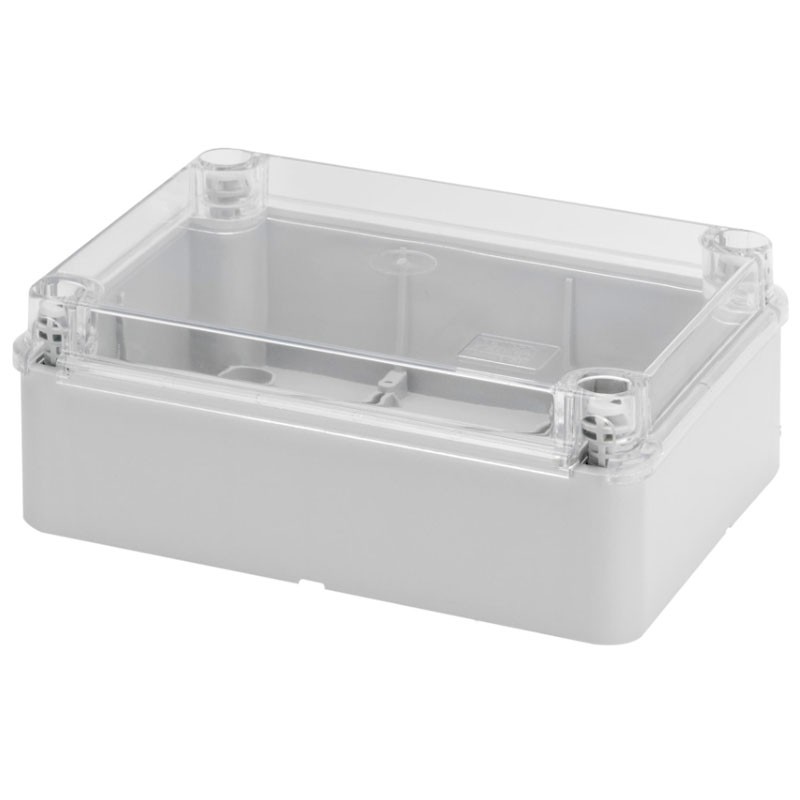

Gewiss external box with transparent cover 190x140x70 GW44427
GEW GW44427
8011564014107
Gewiss junction box, with the following characteristics:
- Suitable for electrical and electronic equipment
- Low and transparent cover
- Degree of protection IP56
- Internal dimensions BxHxP (mm): 190x140x70
- Smooth walls
Accessories for restoring insulation GW44621, GW44622.
Gewiss external box with transparent cover 190x140x70 GW44427
€27.79
Tax included
€27.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 341
: 10
Features:
- Gewiss Series
- Insulation class: II (according to IEC 61140 standard)
- Color: grey RAL 7035
- Material: Technopolymer GWPLAST 120
- Impact resistance IK08
- Max. diameter of executable holes 37 mm
- Cover screws (no. and type): 4 isolators that can be hinged
- Application: Industrial applications
- Glow wire resistance: 650 °C
- Cover color: Transparent
- Lid: Screw-on low
- Temperature range: -25 +60 °C
- Type Material: Halogen free according to EN 60754-2
- Electrocod Code 0231
- Thermopressure with ball: 110 °C
- Screw tightening torque: 1.8 Newton metres
- Ware number 85381000
There are no reviews
Data sheet
- Type:
- Wall
- Shape:
- Rectangular
- Version:
- Transparent Cover
- Degree of protection:
- IP56
- Model:
- Smooth wall
