Schneider residual current circuit breaker kit 16A 1P+N 30MA AC 4.5KA 2 Modules R9D60616
KIT R9D60616

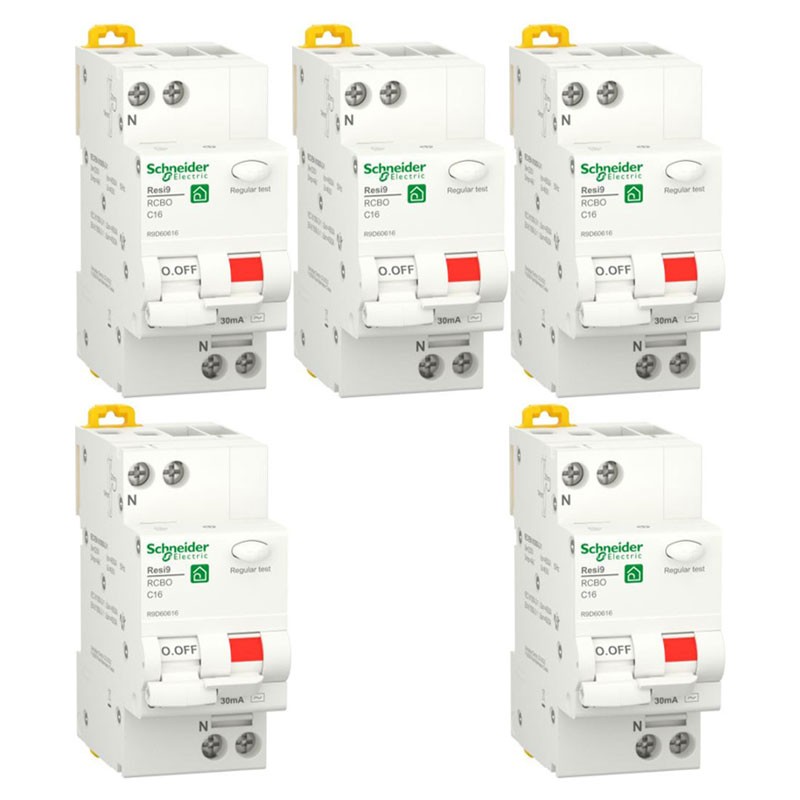

5-piece kit of Schneider Resi9 residual current circuit breaker, with overcurrent protection (RCBO), with the following characteristics:
- 2 modules
- Left neutral position
- DIN connection (universal for any switchboard on the market)
- Poles 1P+N
- 16 amperes
- Interrupting power 4.5kA
- Rated voltage 230 Vac
- Type AC
- Intervention curve C
- Colour white.
With the kit you save compared to individually purchased items
Schneider residual current circuit breaker kit 16A 1P+N 30MA AC 4.5KA 2 Modules R9D60616
€145.05
Tax included
€145.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 189
Further Schneider RCBO combinations:
C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
The AC differential switch tripping is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Schneider Resi9Series
- Thermal magnetic differential circuit breaker with overcurrent protection (RCBO)
- Rated voltage 230 Vac
- Current In 16A
- Interrupting capacity Icn 4,5kA
- Mains frequency 50 Hz
- DIN rail mounting bracket
- Intervention curve C
- Differential protection type AC
- Left neutral position
- Differential sensitivity 30 mA
- Local signalling ON/OFF indication
- 2 modules
- 1P+N
- Height 82 mm
- Depth 70.5 mm
- Width 36 mm
- Product weight 186 gr
- Tightening torque 2 Nm
- Colour White
Data sheet
- KIT:
- Kit RCBO
- Modules:
- 2
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 16A
- Circuit Protections:
- RCBO
