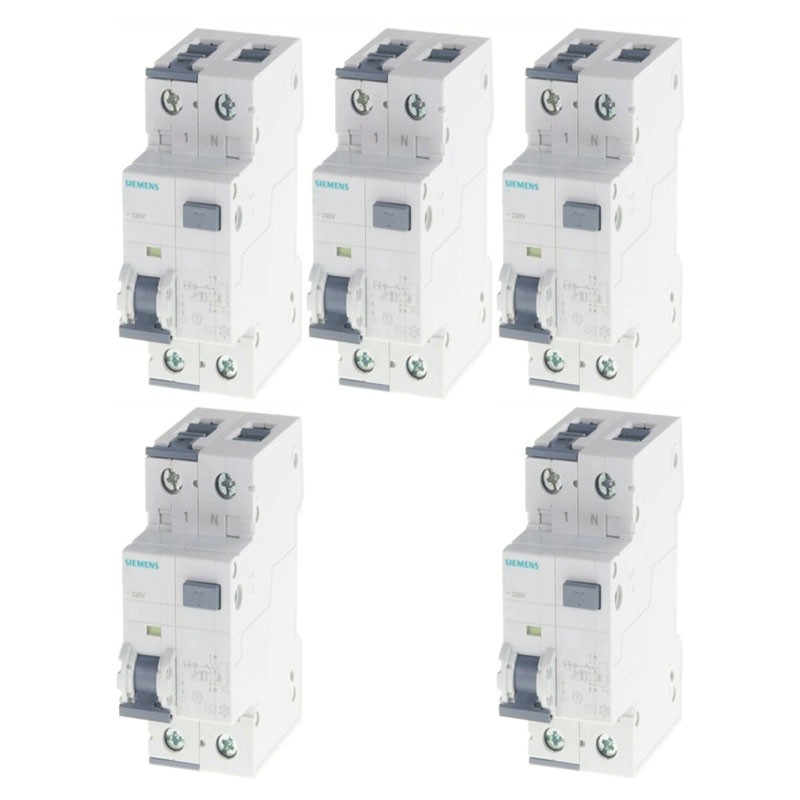

Siemens Kit Residual Current Operated Circuit Breaker 32A 1P+N 30MA 4.5KA 5SU13531KK32
KIT SU13531K32
Kit 5 pieces Siemens Residual Current Operated Circuit Breaker with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- Poles 1P+N
- 32 amperes
- Interrupting power 4.5kA
- Voltage 230/240 Vac
- Differential current Idn 30mA
- Type AC
- Intervention curve C.
With the kit you save compared to individually purchased items
Siemens Kit Residual Current Operated Circuit Breaker 32A 1P+N 30MA 4.5KA 5SU13531KK32
€119.56
Tax included
€119.56
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 593
Pay in installments with Klarna
Further Siemens RCBO combinations:
The Residual Current Operated Circuit Breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.
The Residual Current Operated Circuit Breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The Residual Current Operated Circuit Breaker present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (for example, more than one household appliance in operation);
- the differential one, typical of the lifesaver, which protects the subject from a current leakage.
The AC type switch intervention is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Bticino series
- Voltage 230/240 Vac
- Current In 32A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- Differential current Idn 30mA
- AC differential type
- Frequency of use 50 Hz
- 2 modules
- 1P+N poles
- Height 90 mm
- Width 36 mm
- Depth 77 mm
- Recessed depth 70 mm
- Any mounting position
- Net weight 271 g
- tightening torque / with screw terminals min 2.5 Nm, max 3 Nm
- Degree of protection IP20, for installation in a distribution board, with connected conductors
There are no reviews
Data sheet
- KIT: Kit RCBO
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 32A
- Circuit Protections: RCBO
