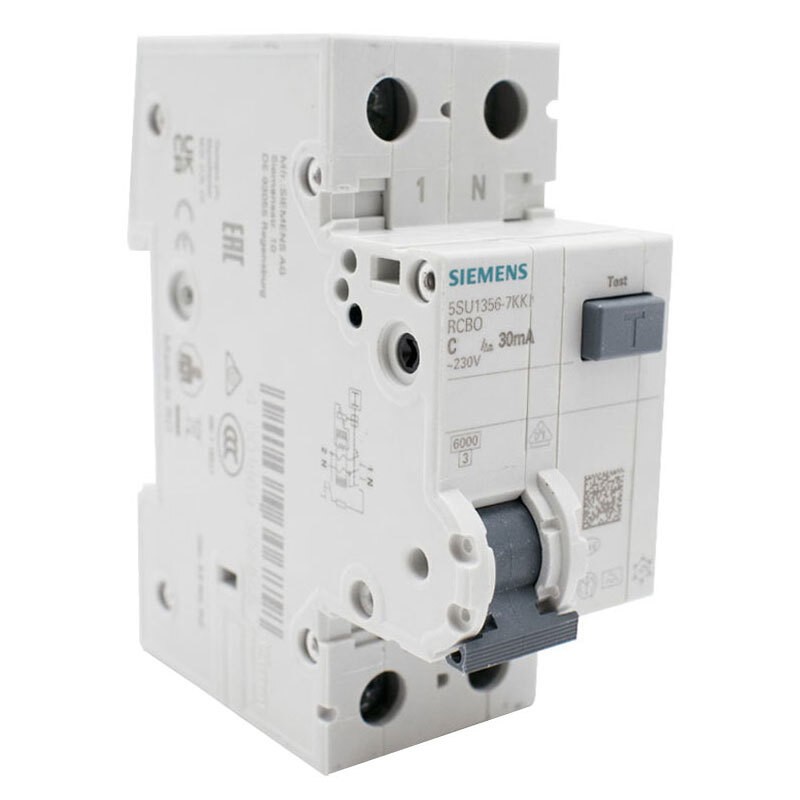

Siemens 32A 6KA 1P+N 30MA differential magnetothermal switch type A 2M 5SU13567KK32
SIE 5SU13567KK32
4001869306872
Siemens SENTRON differential magnetothermal switch:
- 32 Ampere
- Interrupting power 6KA
- Poles 1P+N
- Differential current Idn 30MA
- Class A
- 2 Modules.
Siemens 32A 6KA 1P+N 30MA differential magnetothermal switch type A 2M 5SU13567KK32
€75.54
Tax included
€75.54
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 108
: 20
Pay in installments with Klarna
Features:
- Instant product execution
- Number of poles 2
- Number of poles / with protection 1
- Trip characteristic class C
- Mechanical service life (switching cycles) / typ. 10 000
- Overvoltage category III
- Pollution degree 2
- Voltage type / AC operating voltage
- Insulation voltage (Ui) / nominal value 264 V
- Impulse withstand voltage / nominal value 4,000 V
- Current impulse withstand voltage / for (8/20) µs 1 kA
- Supply voltage: with AC / nominal value 230/240 V - for test device / min 195 V
- Operating frequency 50 Hz
- Degree of protection IP20
- Short-circuit breaking capacity (Icn) / according to EN 61009-1 / nominal value 6KA
- Energy limitation class 3.
Data sheet
- Modules: 2
- Poles: 1P+N
- Power: 6KA
- RCD Type: A
- Differential current : 0.03A
- Amps: 32A
