Oter Flange with neck steel UNI 2281 2 1/2 D8207
OTR D8207

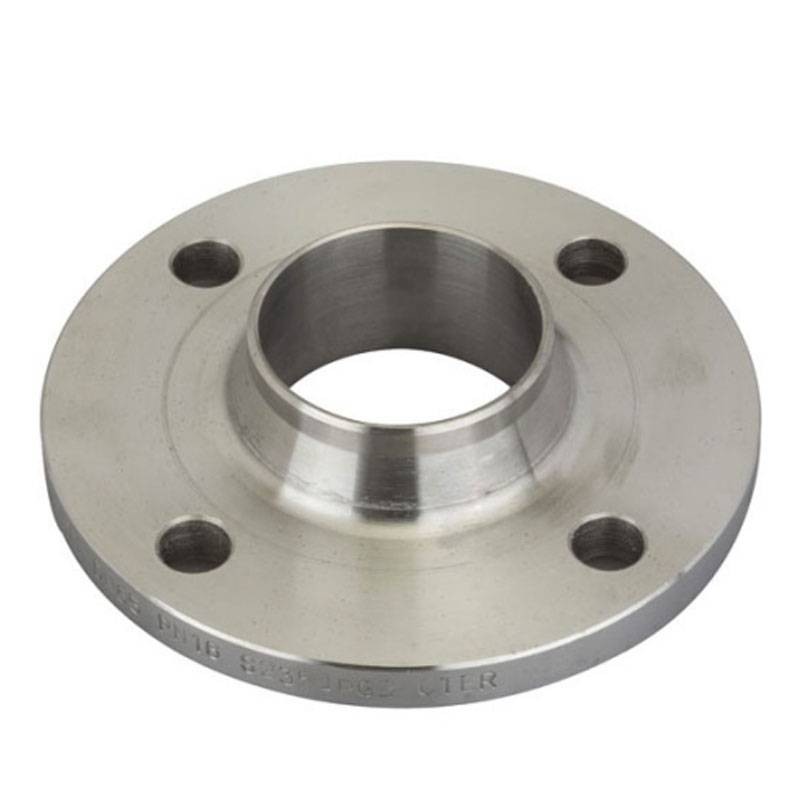

Oter Flange with neck made of UNI 2281 steel with the following characteristics:
- Fittings: 2 in.
- Diameter: 76.1 mm
- Material: steel

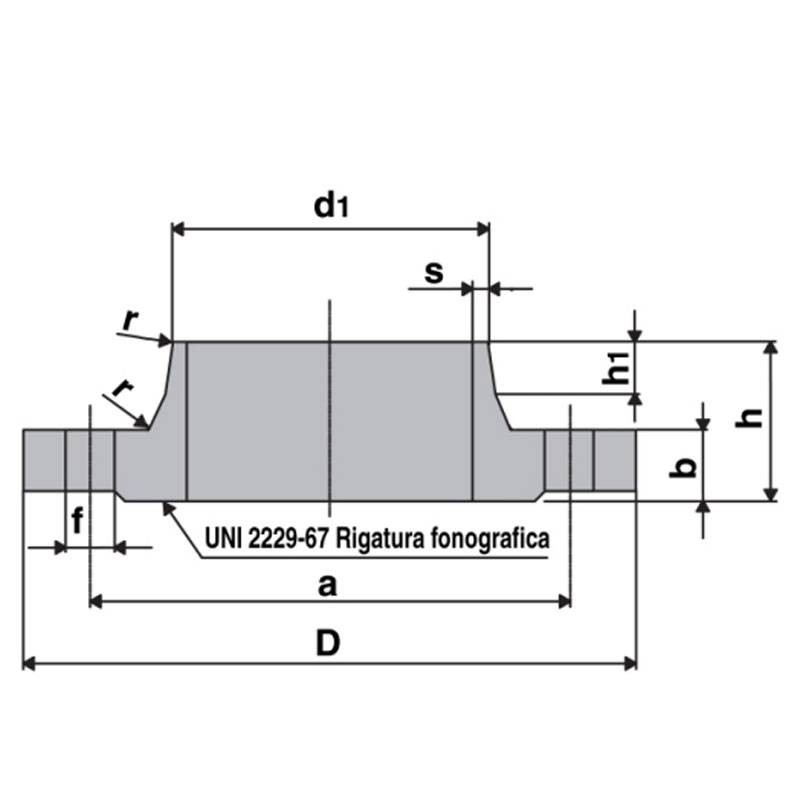

- Dimensions: 45x145x18x185x77.5x2.9x18x8 (h-a-b-D-d1-S-f-n)
- Weight: 3.03 kg
Flange with neck used for non-permanent coupling of two pipes by screws or bolts.
Oter Flange with neck steel UNI 2281 2 1/2 D8207
€36.51
Tax included
€36.51
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequently bought together
Characteristics:
- Dimensional standard UNI EN 1092-1
- Continuous semi-circular profile scoring (radius 0.8÷1 mm and pitch 0.8÷1 mm) of concentric or phonographic (RF) type.
- Step UNI EN 1092-1. For these DN 10÷175 use UNI EN 1092-1 flanges.
- Used for non-permanent coupling of two pipes by means of screws or bolts
There are no reviews
Data sheet
- Type: Flanges
- Model: With neck
- Hoses: 2-1/2
- Material: Steel
