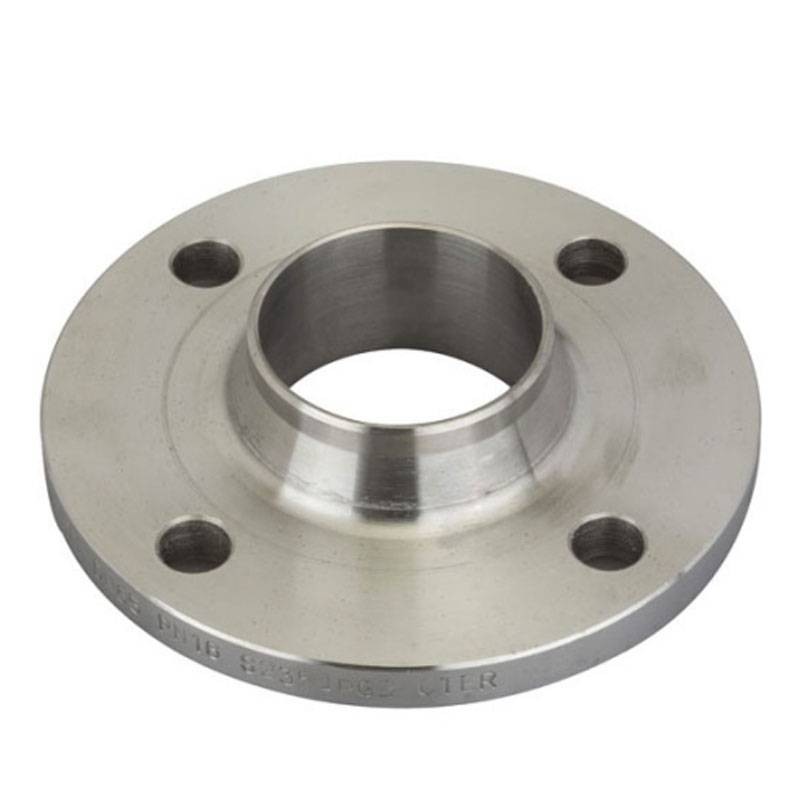

Oter Flange with neck steel UNI 2281 2 inches D8206
OTR D8206
Oter Flange with neck made of UNI 2281 steel with the following characteristics:
- Fittings: 2 1/2 inches
- Diameter: 60.3 mm
- Material: Steel

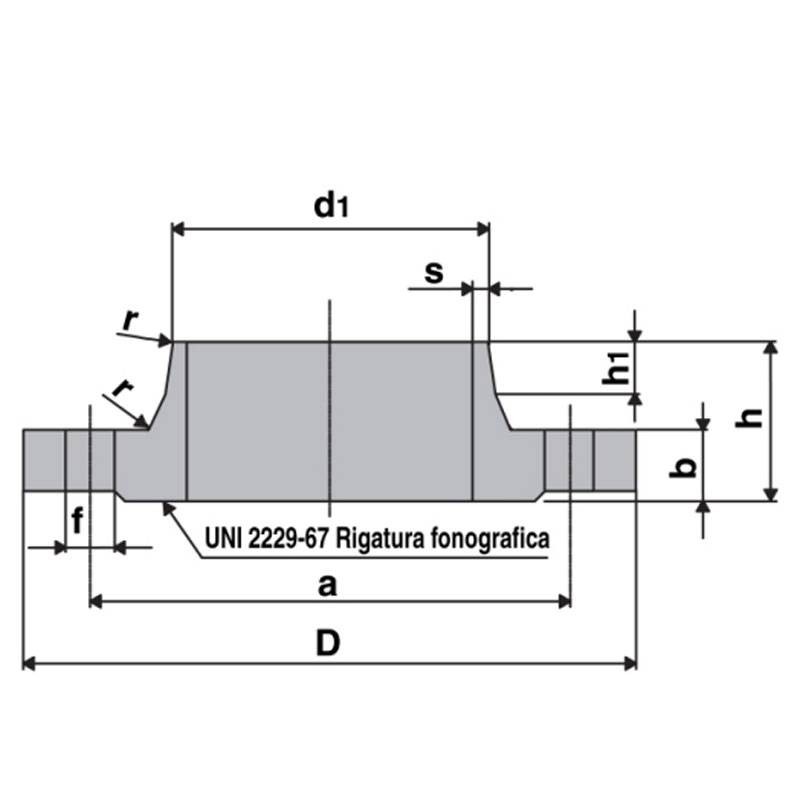

- Dimensions: 45x125x18x165x61.5x2.9x18x4 (h-a-b-D-d1-S-f-n)
- Weight: 2.53 kg
Flange with neck used for non-permanent coupling of two pipes by screws or bolts.
Oter Flange with neck steel UNI 2281 2 inches D8206
€30.97
Tax included
€30.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
Frequently bought together
Characteristics:
- Dimensional standard UNI EN 1092-1
- Continuous semi-circular profile scoring (radius 0.8÷1 mm and pitch 0.8÷1 mm) of concentric or phonographic (RF) type.
- Step UNI EN 1092-1. For these DN 10÷175 use UNI EN 1092-1 flanges.
- Used for non-permanent coupling of two pipes by means of screws or bolts
There are no reviews
Data sheet
- Diameter:
- 60mm
- Type:
- Flanges
- Model:
- With neck
- Hoses:
- 2-1/2
- Material:
- Steel
