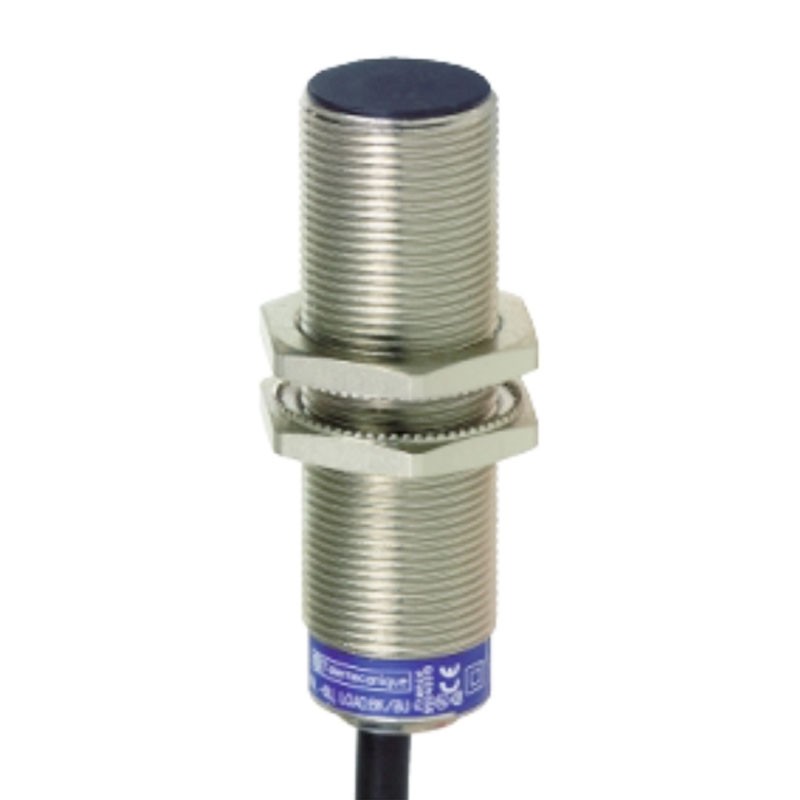

Telemecanique Inductive Sensor XS6 M18 SN 8mm NO PNP XS618B1PAL2
TSI XS618B1PAL2
3389110146349
Telemecanique Schneider XS6 inductive proximity sensor, with the following features:
- Application: Construction site panel
- Sensor shape: Cylindrical M18
- Dimensions: 62 mm
- Body type: Fixed
- Metal immersion mounting possible
- Material: Metal
- Output signal type: digital
- Wiring type: 3 wires
Telemecanique Inductive Sensor XS6 M18 SN 8mm NO PNP XS618B1PAL2
€31.06
Tax included
€31.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 30
Pay in installments with Klarna
Other Features:
- Nominal sensing distance: 8 mm
- Digital output function: 1 NO
- Output circuit type: DC
- Digital output type: PNP
- Electrical connection: Cable
- Cable length: 2 meters
- Rated supply voltage [Us]: 12...48 V DC with reverse polarity protection
- Switching capacity in mA: <= 200 mA DC with overload and short circuit protection
- IP rating: Double insulation IP68 according to IEC 60529b - IP69K according to DIN 40050
- Thread type: M18 x 1
- Sensing surface: frontal
- Face material: PPS
- Housing material: Nickel-plated brass
- Sensing range: > 4...8 mm
- Operating range: 0...6.4 mm
- Differential travel: 1...15% of Sr
- Wire composition: 3 x 0,34 mm²
- Wire insulation material: PvR
- Status LEDs: Output status: 1 LED (yellow)
- Supply voltage limits: 10...58 V DC
- Switching frequency: <= 1000 Hz
- Maximum voltage drop: <2 V (closed)
- Current consumption: <= 10 mA no-load
- Maximum delay: 10 ms
- Maximum response delay: 0.3 ms
- Maximum recovery delay: 0.7 ms
- Symbology: CE
- Threaded length: 52 mm
- Length: 62 mm
- Weight: 0.12 kg
- Product certifications: UL - CSA - E2
- Ambient operating temperature: -25...70 °C
- Storage temperature: -40...85 °C
- Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) per IEC 60068-2-6
- Shock resistance: 50 gn per 11 ms per IEC 60068-2-27
