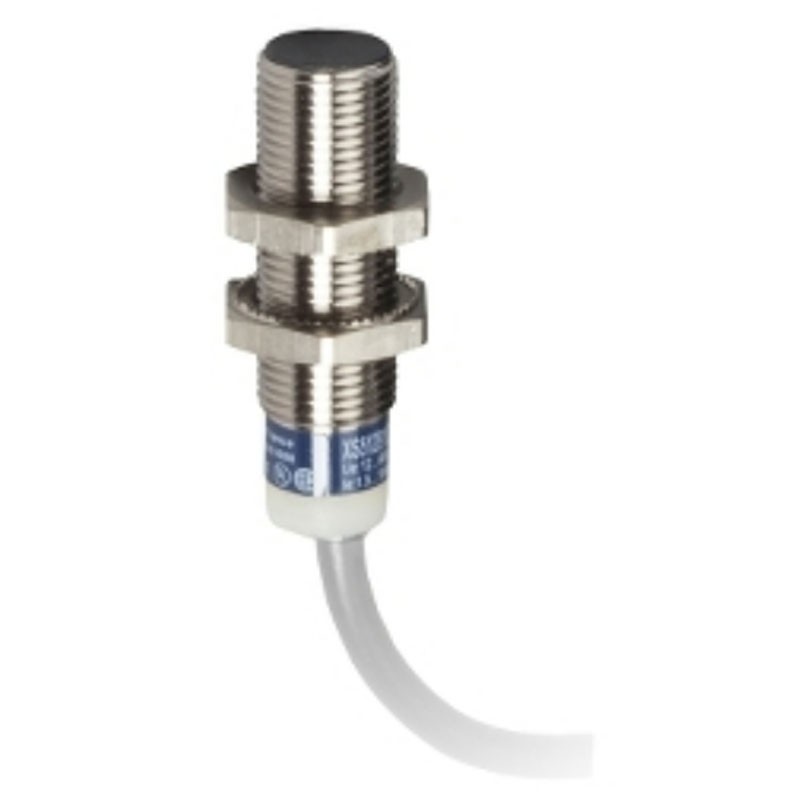

Telemecanique XS5 inductive sensor M12 SN 2mm NO PNP XS512B1PAL2
TSI XS512B1PAL2
3389110143744
Telemecanique Schneider XS5 inductive proximity sensor, with the following characteristics:
- Rated supply voltage [Us]: 12...24 V DC with reverse polarity protection
- Sensor shape: cylindrical M12
- Dimensions: 37 mm
- Body type: fixed
- Metal immersion mounting possible
- Material: metal
- Output signal type: digital
- Wiring type: 3 wires
- Nominal sensing distance: 2
- Digital output function: 1 NO
- DC output circuit type
- Digital output type: PNP
- Electrical connection: cable
- Cable length: 2 meters
Telemecanique XS5 inductive sensor M12 SN 2mm NO PNP XS512B1PAL2
€24.57
Tax included
€24.57
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
The Schneider Electric OsiSense XS cylindrical (M12) inductive proximity sensor has a thermoplastic sensing surface and nickel-plated brass body.
It has a sensing distance of 2 mm, PNP output with NO function and is pre-wired (2 m cable). It has a supply voltage of 12 to 24 VDC. This cylindrical inductive threaded general purpose proximity sensor is flush mountable. It is mountable directly on a surface or bracket due to the external thread and double nuts and is CCC, CSA, UL certified.
Other technical features:
- Ma switching capacity: <= 200 mA with overload and short-circuit protection
- IP rating: Double insulation IP68 in accordance with IEC 60529, IP69K in accordance with DIN 40050
- Thread type: M12 x 1
- Sensing surface: front side
- Front side material: PPS
- Box material: nickel-plated brass
- Operating zone: 0...1.6 mm
- Differential travel: 1...15% Sr
- Wire composition: 3 x 0.34 mm²
- Wire insulation material: PvR
- Status LEDs: output status: 1 LED (yellow)
- Supply voltage limits: 10 to 36 VDC
- Switching frequency: <= 5000 Hz
- Maximum voltage drop: <2V (closed)
- Current consumption: <= 10 mA at no load
- Maximum first rise delay: 10 ms
- Maximum response delay: 0.1 ms
- Maximum recovery delay: 0.1 ms
- CE Symbology
- Threaded length: 25 mm
- Length: 33 mm
- Weight: 0.075 kg
- Product certifications: UL, CSA
- Operating ambient temperature: -25/+70 °C
- Storage temperature: -40/+85 °C
- Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 50 gn for 11 ms complies with IEC 60068-2-27
