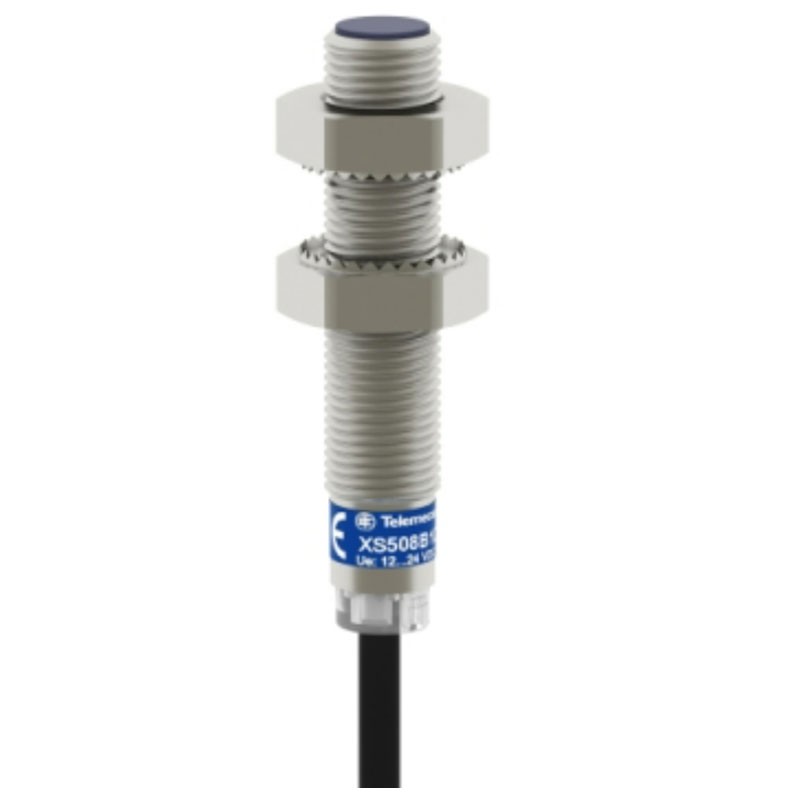

Telemecanique XS6 inductive sensor M8 SN 2.5mm NO NPN XS608B1NAL2
TSI XS608B1NAL2
3389110145618
Telemecanique Schneider XS6 M8 inductive proximity sensor with the following features:
- 51 mm size
- Fixed body type
- Metal immersion mounting option
- Material: stainless steel
- Output signal type: digital
- Wiring type 3 wires
- Nominal sensing distance 2.5 mm
- Digital output function 1 NO
- Output circuit type: DC
- Digital output type: NPN
- Electrical connection: Cable
- Cable length: 2 meters
- Rated supply voltage [Us]: 12...48 V DC with reverse polarity protection
- Switching capacity in mA: <= 200 mA DC with overload and short-circuit protection
- IP67 degree of protection in accordance with IEC 60529
Telemecanique XS6 inductive sensor M8 SN 2.5mm NO NPN XS608B1NAL2
€33.20
Tax included
€33.20
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
The Schneider Electric cylindrical XS inductive sensor (M8 thread) has a PPS sensing face and a 303 stainless steel housing. It has a sensing distance of 2.5 mm, NPN output with NO function and is pre-wired (2 m cable). It has a supply voltage of 12 to 48 VDC. This cylindrical inductive threaded general purpose proximity sensor is flush mountable and has a wider sensing range. It is mountable directly on a surface or bracket, thanks to the external thread and double nuts, and is CSA UL certified.
Other technical features:
- M8 x 1 thread type
- Sensing surface Front
- Front face material PPS
- Cassette material: 303 stainless steel
- Sensing range: > 0...2.5 mm
- Operating zone: 0...2 mm
- Differential travel 1...15% of Sr
- Wire composition 3 x 0.11 mm²
- Wire insulation material PvR
- Status LEDs: Output status: 1 LED (yellow)
- Supply voltage limits 10...58 V DC
- Switching frequency <= 2500 Hz
- Maximum voltage drop <2 V (closed)
- Current consumption <= 10 mA at no load
- Maximum delay for first 10 ms
- Maximum response delay 0.2 ms
- Maximum recovery delay 0.2 ms
- CE Symbology
- Threaded length 42 mm
- Length 51 mm
- Weight 0.035 kg
- Product Certifications: CSA, UL
- Operating ambient temperature: -25/+70 °C
- Storage temperature: -40/+85 °C
- Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) complies with IEC 60068-2-6
- Shock resistance: 50 gn for 11 ms complies with IEC 60068-2-27
