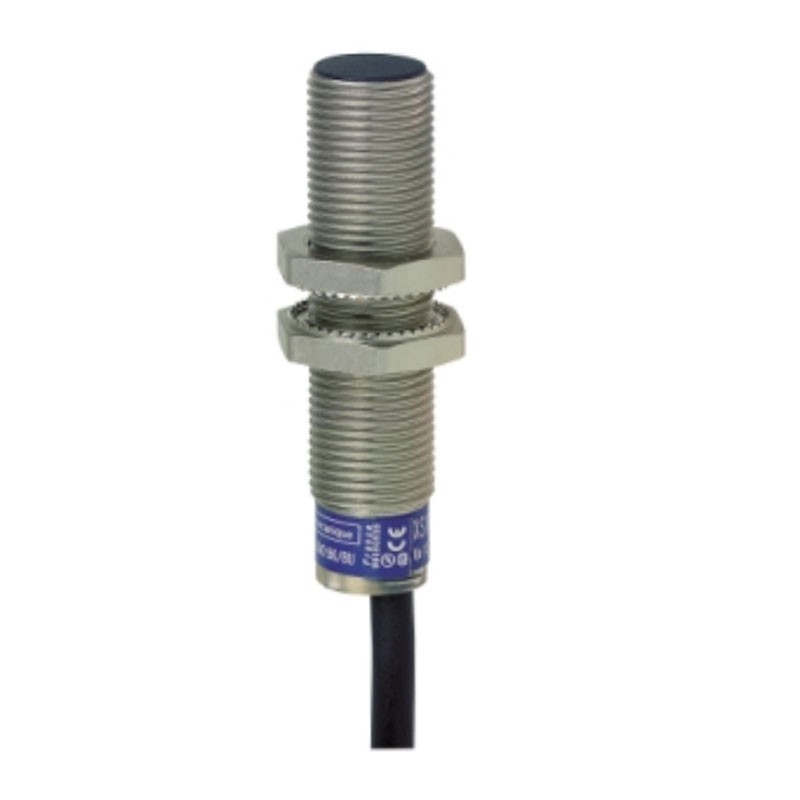

Telemecanique XS6 inductive sensor M12 SN 4mm NO NPN XS612B1NAL2
TSI XS612B1NAL2
3389110146264
Telemecanique Schneider XS6 inductive proximity sensor, with the following characteristics:
- Rated supply voltage [Us]: 12...48 V DC with reverse polarity protection
- Switching capacity in mA; <= 200 mA DC with overload and short-circuit protection
- Degree of protection: double insulation IP68 in accordance with IEC 60529 - IP69K in accordance with DIN 40050
- Sensor shape: cylindrical M12
- Body type: fixed
- Metal immersion mounting possible
- Material: metal
- Output signal type: digital
- Wiring type: 3 wires
- Nominal sensing distance: 4mm
- Digital output function: 1 NO
- Symbology: CE
Telemecanique XS6 inductive sensor M12 SN 4mm NO NPN XS612B1NAL2
€27.74
Tax included
€27.74
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 2
The Schneider Electric OsiSense XS cylindrical (M12) inductive proximity sensor has a thermoplastic sensing surface and nickel-plated brass body. It has a sensing distance of 4 mm, NPN output with NO function and is pre-wired (2 m cable). It has a supply voltage of 12 to 48 VDC. This cylindrical inductive threaded general purpose proximity sensor is flush mountable and has a wider sensing range. It is mountable directly on a surface or bracket, thanks to the external thread and double nuts, and is CSA UL certified.
Other features:
- Digital output function: 1 NO
- Output circuit type: DC
- Digital output type: NPN
- Electrical connection: cable
- Cable length: 2 meters
- Thread type: M12 x 1
- Sensing surface: front side
- Front side material: PPS
- Cassette material: nickel-plated brass
- Sensing range: > 0...2.5 mm
- Operating zone: 0...3.2 mm
- Differential travel: 1...15% Sr
- Wire composition: 3 x 0.34 mm²
- Wire insulation material: ISR
- Status LEDs: Output status: 1 LED (yellow)
- Supply voltage limits: 10...58 V DC
- Switching frequency: <= 2500 Hz
- Maximum drop voltage: <2 V (closed)
- Current consumption: <= 10 mA at no load
- Maximum delay before on: 10 ms
- Maximum response delay: 0.2 ms
- Maximum recovery delay: 0.2 ms
- Operating ambient temperature: -25/+70 °C
- Storage temperature: -40/+85 °C
- Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 50 gn for 11 ms complies with IEC 60068-2-27
Dimensions and weight:
- 42 mm threaded length
- Length 54 mm
- Weight 0.075 kg
