Telemecanique XS5 inductive sensor M12 SN 2mm NO PNP XS512B1PAM12
TSI XS512B1PAM12
3389110143782
Telemecanique Schneider XS5 M12 inductive sensor, with the following characteristics:
- Sensor type: Inductive proximity sensor
- Sensor shape: Cylindrical M12
- Metal immersion mounting option
- Output signal type: Digital
- Wiring type: 3 wires
- Nominal sensing distance: 2 mm
- Digital output function: 1 NO
- Output circuit type: DC
- Digital output type: PNP
- Rated supply voltage: 12...48V DC with reverse polarity protection
Telemecanique XS5 inductive sensor M12 SN 2mm NO PNP XS512B1PAM12
€23.27
Tax included
€23.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4

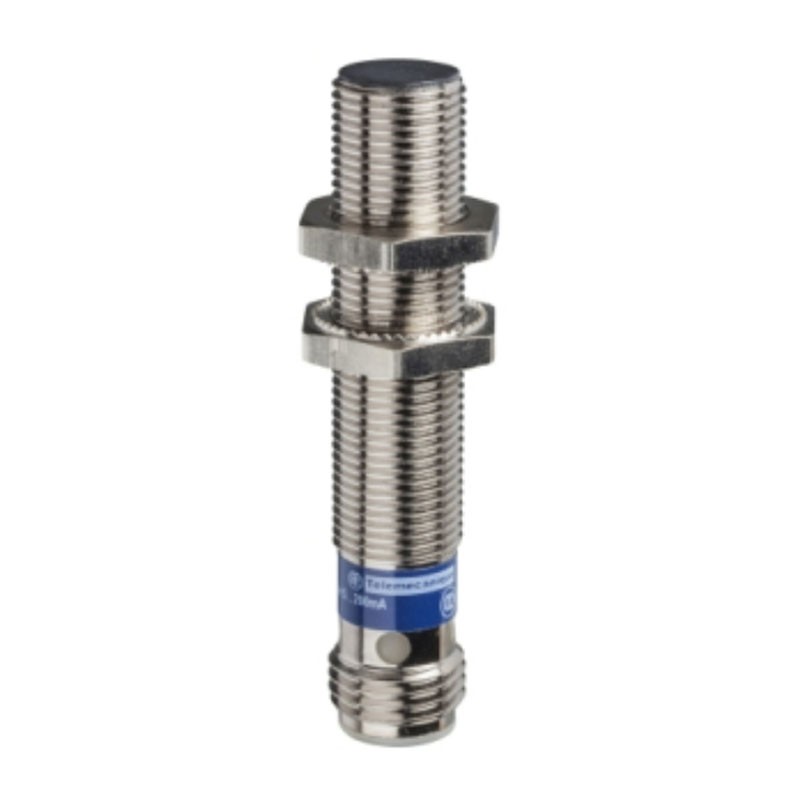

XS cylindrical inductive sensor (M12 thread) has a PPS sensing face and a nickel-plated brass housing. It has a sensing distance of 2 mm, PNP output with NO function and an M12 connector. It has a supply voltage of 12 to 24 VDC. This cylindrical inductive threaded general purpose proximity sensor is flush mountable. It is directly mountable on a surface or bracket due to the external thread and double nuts and is CCC, CSA, UL certified.
Features:
- Switching capacity in mA: <= 200 mA with overload and short-circuit protection
- IP degree of protection: IP67 in accordance with IEC 60529 - IP69K in accordance with DIN 40050
- Front face material: PPS
- Enclosure material: nickel-plated brass
- Operating zone: 0 to 1.6 mm
- Supply voltage limits: 1058 VDC
- Switching frequency: <= 1000 Hz
- Current consumption: <= 10 mA at no load
- Operating ambient temperature: -25/+70 °C
- Storage temperature: -40/+85 °C
- Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 50 gn for 11 ms complies with IEC 60068-2-27
- Weight: 0.035 kg
