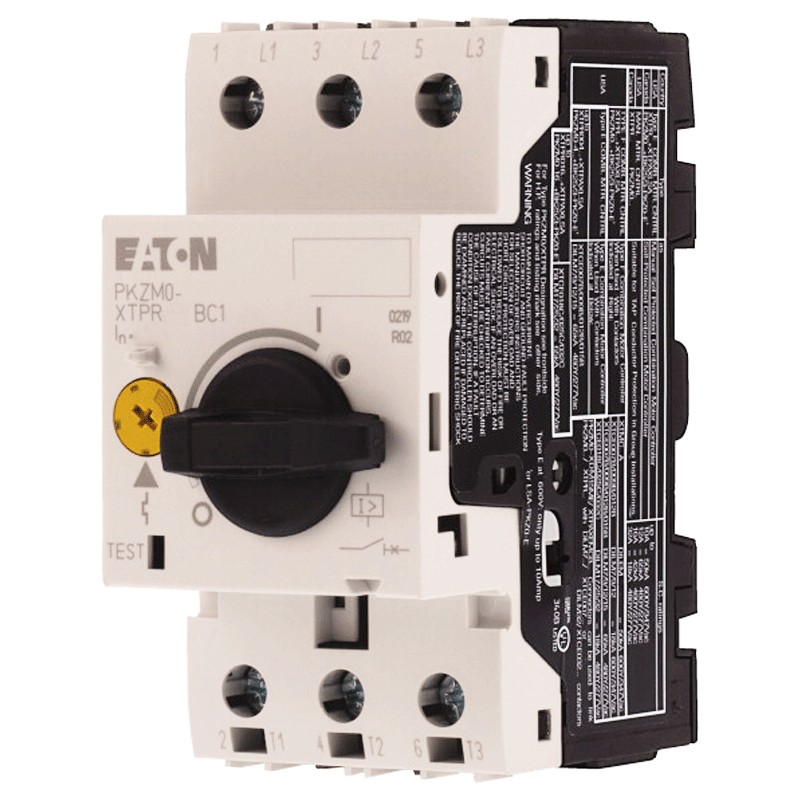

Eaton motor protection circuit breaker 3P 0.16-0.25A 72731
EAO 72731
9000004904572
Motor protection switch for Eaton motor protection, with the following characteristics
- 3 poles - size PKZM0
- With adjustable thermal trip and instantaneous magnetic trip
- Rated operational voltage Ue 690V
- Rated operational current 0.25A
- Power 0.06 kW
- Overload releases 0.16 -0.25A
- Rated frequency 40-60 Hz
Eaton motor protection circuit breaker 3P 0.16-0.25A 72731
€44.05
Tax included
€44.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Eaton series
- 3 poles - size PKZM0
- With adjustable thermal release and instantaneous magnetic release
- Phase failure sensitive
- Screw or snap-in fixing
- With screw terminals
- Dome mounting dimensions 45 mm
- Rated operational voltage Ue 690V
- Degree of protection IP20
- Rated operational current 0.25A
- Power 0.06 kW
- Overload releases 0.16 -0.25A
- Rated frequency 40 - 60 Hz
- Ambient operating temperature min -25 °C
- Ambient operating temperature max +55 °C
- Degree of protection Terminations IP00
- Ambient temperature storage -40 - 80 °C
- Ambient temperature daytime -25 - +55 °C
- Ambient temperature in storage - 25 - 40 °C
- Altitude max 2000 mm
- Main cable terminal capacity Screw terminals Solid or stranded 18 - 10 AWG
- Main cable terminal capacity Screw terminals Stripping length 10 mm
- Specified tightening torque for terminal screws Main cable 1.7 Nm
- Specified tightening torque for terminal screws Control circuit cables 1 Nm
- Rated impulse withstand voltage [Uimp] 6000 VAC
- Overvoltage category/ pollution degree III/3
- Height 93 mm
- Width 45 mm Depth 76 mm
- Depth 76 mm
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 3
- Poles: 3P
- Power: 150KA
- Amps: 0.16-0.25 A
