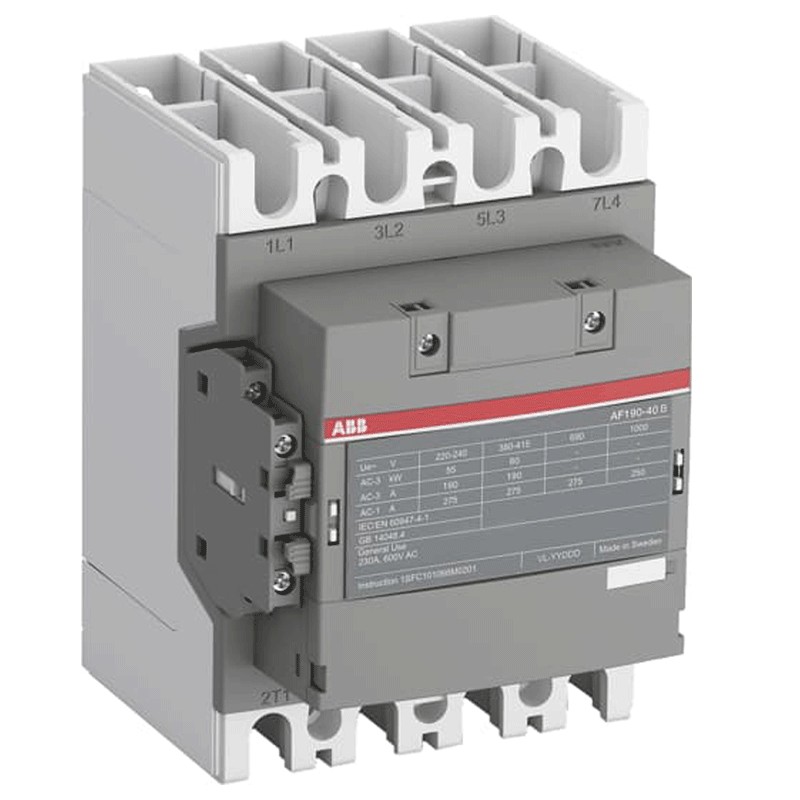

ABB 4-pole contactor 275A 100-250V a.c./d.c AF190401113
ABB AF190401113
7320500504277
Abb contactor, with the following characteristics
- Rated operating voltage main circuit 690 V
- Rated control circuit voltage DC operation 100/250 V
- 4 poles
- 2 modules
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 275 amperes
ABB 4-pole contactor 275A 100-250V a.c./d.c AF190401113
€683.88
Tax included
€683.88
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated main circuit operating voltage 690 V
- Rated voltage control circuit DC operation 100/250 V
- Operating current 275 amperes
- Rated main circuit frequency 50/60Hz
- 4 poles
- 2 modules
- Number of NO main contacts 4
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Coilprotection IP20,main terminals IP20
- Product width 140 mm
- Product depth 153 mm
- Product height 196 mm
- Product net weight 3.3 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Modules:
- 2
- Poles:
- 4P
- Amps:
- 275A
