Oter threaded flange steel UNI 2254 4 inches D5409
OTR D5409
Oter threaded flange made of UNI 2254 steel with the following characteristics:
- Fittings: 4 inches
- Diameter: 114.3 mm
- Material: steel

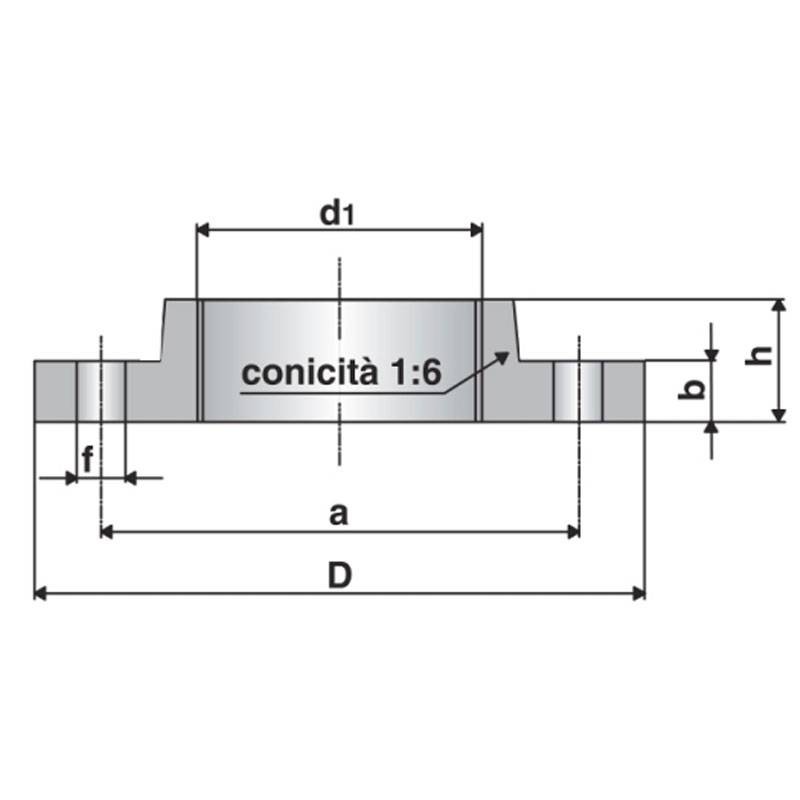

- Dimensions: 40x180x20x220x4x18x8 (h-a-b-D-d1-f-n)
- Weight: 4.9 kg
Flange with internally threaded sleeve used for non-permanent joining of two pipes by screws or bolts.
Oter threaded flange steel UNI 2254 4 inches D5409
€55.05
Tax included
€55.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
Frequently bought together
Characteristics:
- UNI EN 1092-1 dimensional standard
- GAS thread UNI 338
- Continuous semi-circular profile groove (radius 0.8÷1 mm and pitch 0.8÷1 mm) of concentric or phonographic (RF) type
Use: flange with internally threaded sleeve used for non-permanent joining of two pipes by means of screws or bolts.
There are no reviews
Data sheet
- Type:
- Flanges
- Model:
- Threaded
- Hoses:
- 4
- Material:
- Steel
