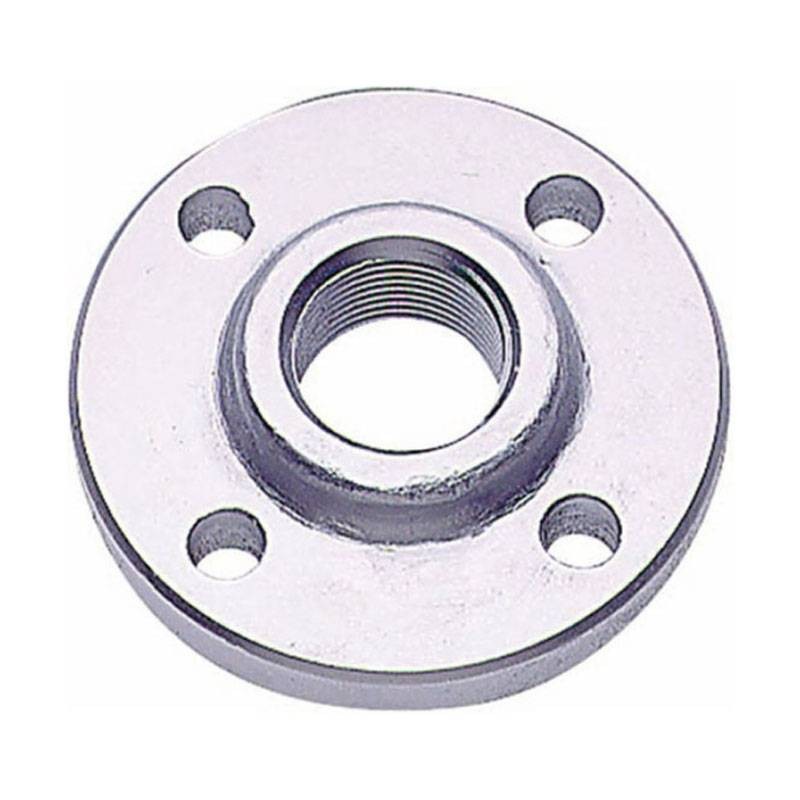

Oter Threaded Flange steel UNI 2254 2 inches D5406
OTR D5406
Oter threaded flange made of UNI 2254 steel with the following characteristics:
- Fittings: 2 inches
- Diameter: 60.3 mm
- Material: steel

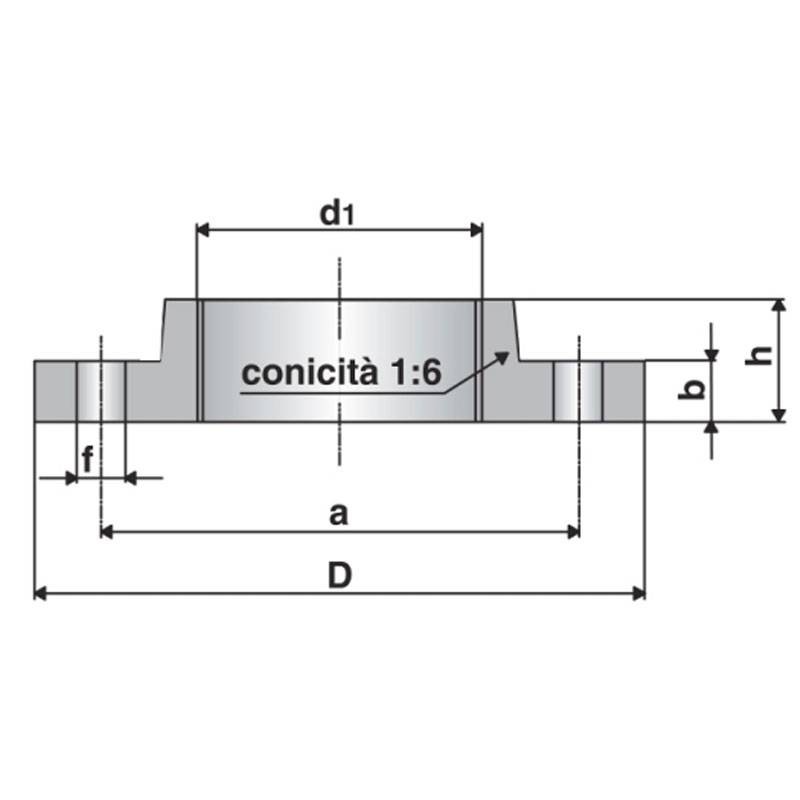

- Dimensions: 28x125x18x165x2x18x4 (h-a-b-D-d1-f-n)
- Weight: 2.85 kg
Flange with internally threaded sleeve used for non-permanent joining of two pipes by screws or bolts.
Oter Threaded Flange steel UNI 2254 2 inches D5406
€30.43
Tax included
€30.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequently bought together
Characteristics:
- UNI EN 1092-1 dimensional standard
- GAS thread UNI 338
- Continuous semi-circular profile groove (radius 0.8÷1 mm and pitch 0.8÷1 mm) of concentric or phonographic (RF) type
Use: flange with internally threaded sleeve used for non-permanent joining of two pipes by means of screws or bolts.
There are no reviews
Data sheet
- Diameter: 60mm
- Type: Flanges
- Model: Threaded
- Hoses: 2
- Material: Steel
