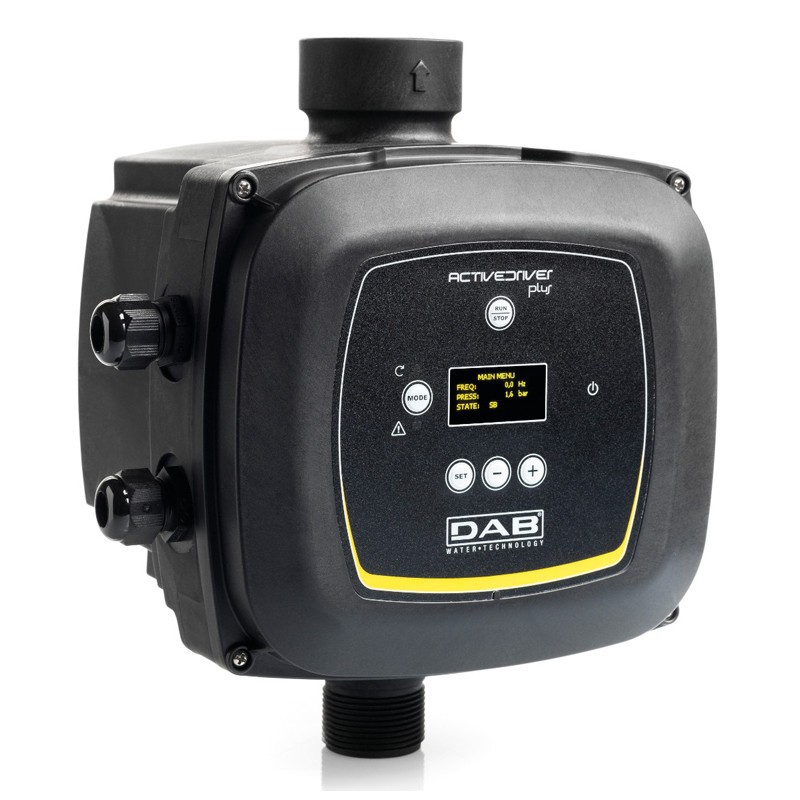

Inverter for Electric pump Dab ACTIVE DRIVER PLUS M/M 1.1 60149661
DAB 60149661
8059893079251
Inverter for Electric pump Dab ACTIVE DRIVER PLUS M/M 1.1 for the control and command of hydraulic pumps find their natural Application in pumping systems for constant pressure: domestic, industrial, and agricultural.
Inverter for Electric pump Dab ACTIVE DRIVER PLUS M/M 1.1 60149661
€400.53
Tax included
€400.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 12
Pay in installments with Klarna
Advantages:
- Constant pressure
- Silent operation
- The economy of operation
- Reduction in the consumption of water
- Smaller overall dimensions (expansion vessels are not required)
- Less maintenance
- Complete protection of the pump from a condition of abnormal.
The inverter Active Driver is a device command and control for an electric pump, which includes the connections to the hydraulic system, a pressure sensor, a flow sensor and a converter, frequency electronic (inverter). LActive Driver applies on the delivery of each electric pump, adjusts the rotation speed of the electric pump, which is connected, in order to obtain constant pressure to vary the flow rate of water required. The water that flows through the connections of the Active Driver Plus also helps to cool the heat produced by internal electronic components.
TheActive Driver is starting the pump the first water demand. The speed of the pump is adjusted (continuously) to the minimum value that can satisfy the user request. This allows a considerable energy saving. In a group the start of the second and third pump occurs in a cascade, when the first pump reaches the maximum rotation speed. The pressure is user adjustable via two push-buttons + and - posts on the Active Driver (usually all pumps are set at the same pressure value).
The pumps are stopped automatically in the following cases:
- Overcurrent pump
- Dry running
- Supply voltage low
- The exceedance of a maximum value of pressure (adjustable)
- Overheating electronic components Active Driver Plus.
Features:
- Max current of motor a 8,5 To
- Max current motor 1.1 kW
- Power supply single-Phase 1x230
- Power electric pump, single-phase 1x230
- Communication interface for groups
- compatible with surface Pumps, submersible 4" and 5" with single phase motor and of motor current up to 8.5 A
- Adjustment pressure BAR 1-6.
Produit très fiable et très complet. Apporte vraiment une grande souplesse à l'utilisation d'une pompe
Great inverter.."…………………
matériel conforme a mes attentes mais pas encore mis en service
Ottimo inverter per pompe monofasi, consigliato!
prodotto come in descrizione.
Tempi di invio e ricezione rispettati
Régulateur de pression pour citerne , au top !
Correspond à mes attentes. Notice un peu complexe. Première mise en service pas évidente a comprendre.
Listenpreis 550€ ! Innovationen sind gut, aber hier wurde bei der Preisgestaltung deutlich übertrieben.
Pas encore testé, mais c'est du classique et le prix est très serré ! Livraison éclair en période de noël.
Data sheet
- Type: Inverter for electric Pumps
