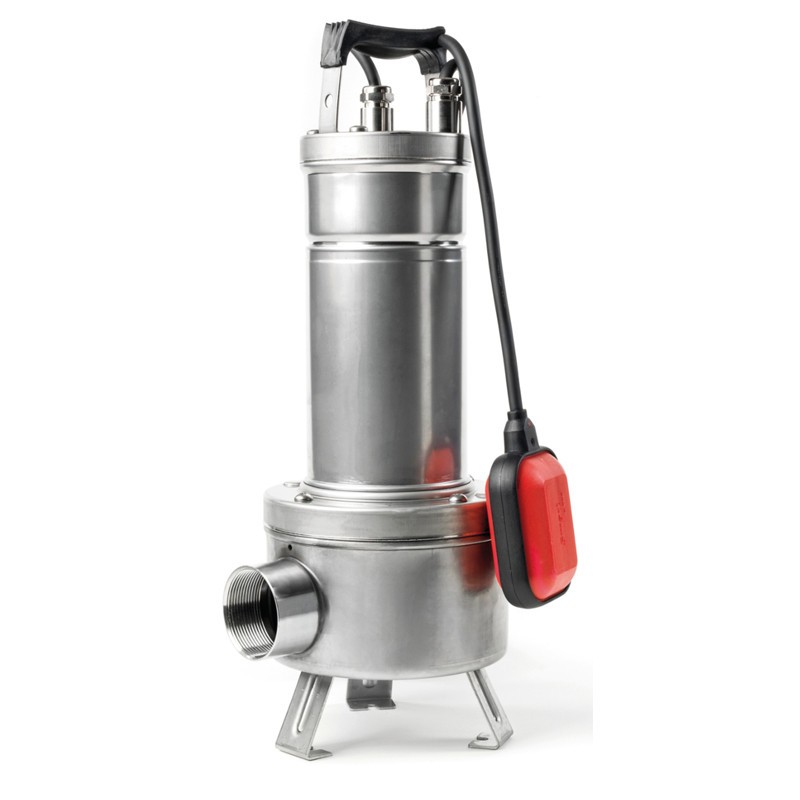

Submersible pump DAB FEKA VS 1000MA 1kW lifting wastewater 103040080

Brand: Dab

Cod: DAB 103040080 EAN:

Submersible pump centrifugal DAB FEKA VS 1000MA 1kW stainless steel impeller is a vortex liquid, steel made, suitable for lifting sewage and waste water in general containing solid bodies with maximum dimensions up to 50 mm.

Download technical data sheet

Submersible pump DAB FEKA VS 1000MA 1kW lifting wastewater 103040080

€500.83 Tax included

€500.83

Submersible pump DAB FEKA VS 1000MA 1kW lifting wastewater 103040080

€500.83
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 3

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Features:

Pumped liquid: sewage and used water in general, however, non-aggressive
Free passage: 50 mm
Temperature range of the liquid: - from 0°C to +35°C for domestic use (EN 60335-2-41) - - - - from 0°C to +50°C for other uses
Maximum ambient temperature for the operation of the pump motor emerged: +40°C
Maximum immersion depth: 7 metres
Motor degree of protection: IP68
Insulation class: F
Voltage range: 220-240V~ 50Hz single Phase
Power cable: 10 metres H07RN-F with plug for single-phase version
Pump body, pump cover, seal housing, motor casing, cap with handle made of stainless steel AISI 304
Steel impeller investment casting
Handle covered with rubber insulation
Motor shaft in stainless steel AISI 316
Double mechanical seal with chamber dolio interposed oil (non-toxic), in carbon/alumina on motor side and silicon carbide/silicon carbide on the pump side
Power supply 1 x 220 V -240 V ~
Rated power 1kW
Rated power 1,36 HP
In 6,63 A.

Technical characteristics of the motor: the Motor dry, asynchronous, tin, cooled by the pumped liquid. Rotor mounted on ball bearings greased for life, oversized and selected to guarantee silent running and long life. Protection thermo-meter in the series for the single-phase version, by the user for three-phase version. Permanently inserted capacitor in the single-phase version. Continuous duty with liquid at 35 °C and pump completely submerged. The single-phase version can be supplied with float for automatic operation. Power cable: 10 metres H07RN-F with plug for single-phase version. Number of poles: 2 Max starts/hour: 20.
