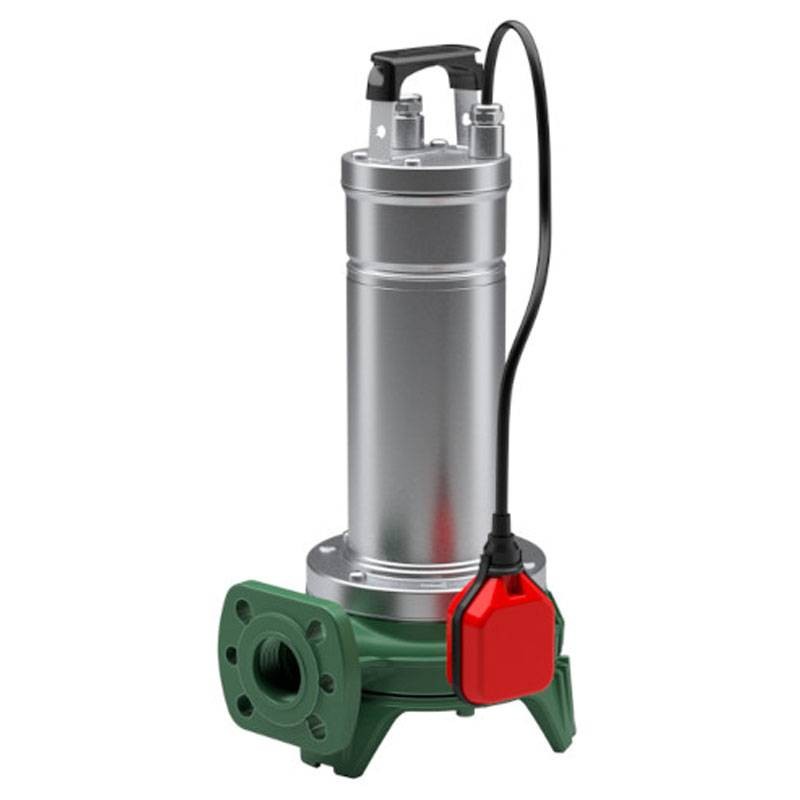

Dab Feka submersible pump vs Grinder 1000 MA 60211233
DAB 60211233
Dab Feka submersible pump vs Grinder 1000 MA, for draining sewage from drains in civil and commercial areas.
It is applied to wastewater lifting systems containing fecal matter in buildings and construction sites. Thanks to the grinder, the pump is suitable for installations with small-diameter pipes or requiring high pressures.
Pump suitable for fixed installations with coupling device or mobile if placed directly on the bottom of the tank.
- Power supply 220x240V 50hz
- Power Max 1.3W
- Current In 6.4A
- Connections Rp 1 1/2
- Flange DN32 PN10 / 6 - DN40 PN6
Automatic version with the built-in float switch.
Dab Feka submersible pump vs Grinder 1000 MA 60211233
€626.20
Tax included
€626.20
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
The pump is certified to the standard by the European Union EN 12050-1, which applies to lifting systems for wastewater containing fecal matter in buildings and construction sites. Construction according to IEC 2-3CEI 61-69 (EN 60335-2-41) standards.
Pump construction features:
- Motor shaft is made of AISI 316 stainless steel. Double mechanical seal with interposed dolio chamber (non-toxic oil) made of carbon/alumina on motor side and silicon carbide/silicon carbide on pump side. Seal holder cover, motor case, shell and handle are made of stainless steel. The pump body and base are made of cast iron. The grinding system is made of AISI 630 stainless steel. The handle is covered with insulating rubber.
Motor construction features:
- Dry motor, asynchronous type, sealed, cooled by the pumped liquid. The rotor is mounted on ball bearings greased for life, oversized and selected to ensure quiet operation and durability. Thermo-amperometric protection as standard for single-phase version with capacitor inserted as standard, three-phase version has thermal protection that can be connected to a control panel.
Features:
- Type of pumped liquid: sewage and general used water, nonaggressive
- Liquid temperature: 0°C to +40°C for domestic use
- Delivery connection: 1 1/2 GAS thread
- Delivery direction: horizontal and vertical with curve kit accessory
- Impeller: cast iron vortex with grinder
- Motor protection rating: IP68
- Thermal classification of motor insulation: F
- Type of power cable: H07RN8-F
- Possible installation type: fixed or mobile in vertical position
- Maximum immersion: 7 meters
- Weight 23 kg
There are no reviews
Data sheet
- Type: Pumps Submersible
- Model: Drainage
