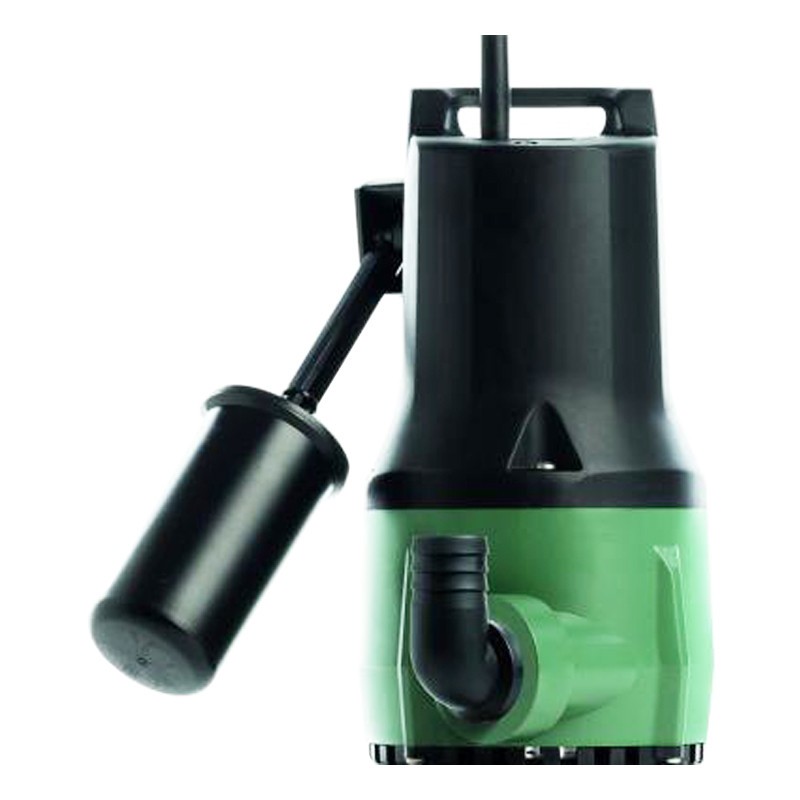

Submersible pump Dab NOVA 600 MA 60191566H
DAB 60191566H
Submersible pump Dab NOVA 600 MA for drainage clear water for domestic use, suitable for domestic use in fixed applications with automatic operation, for draining basements and garages subject to flooding.
Submersible pump Dab NOVA 600 MA 60191566H
€168.07
Tax included
€168.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Thanks to its compact shape and easy to handle also finds particular application as a portable pump for emergencies such as: extraction of water from tanks or rivers, emptying swimming pools and fountains or excavations and subways. Also suitable for gardening and hobbies in general.
The level switch allows fixed installation and ensuring the automatic operation.
Available also the version with the pump shaft in stainless steel special (SV).
THE CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body, impeller, cap and inlet grating, polymer waterproof. Motor, rotor shaft and screws in stainless steel. Triple seal rings interposed with a chamber of oil
THE CONSTRUCTIVE CHARACTERISTICS OF THE ENGINE
Type submersible asynchronous, continuous duty. Stator inserted in a housing sealed in stainless steel and covered by a cap which encloses the cabling, microswitch and capacitor. Rotor mounted on ball bearings greased for life and are oversized in order to ensure silent running and long life. Protection thermo-meter is built-in and permanently inserted capacitor in the single-phase version. For the protection of the three-phase motor it is advisable to use a telesalvamotore in accordance with the rules.
Features:
- Voltage single-phase 220-240 V / 50 Hz
- Series cables for single-phase version: 5 metres H05 RN-F
- Plug in the series for the single-phase version: SCHUKO CEE 7 - VII - UNEL 47166-68
- P1 Max 0,80 kW
- P2 nominal 0,55 kW - HP 0,75
- In 3.4 To
- Automatic with float switch.
There are no reviews
Data sheet
- Type: Pumps Submersible
