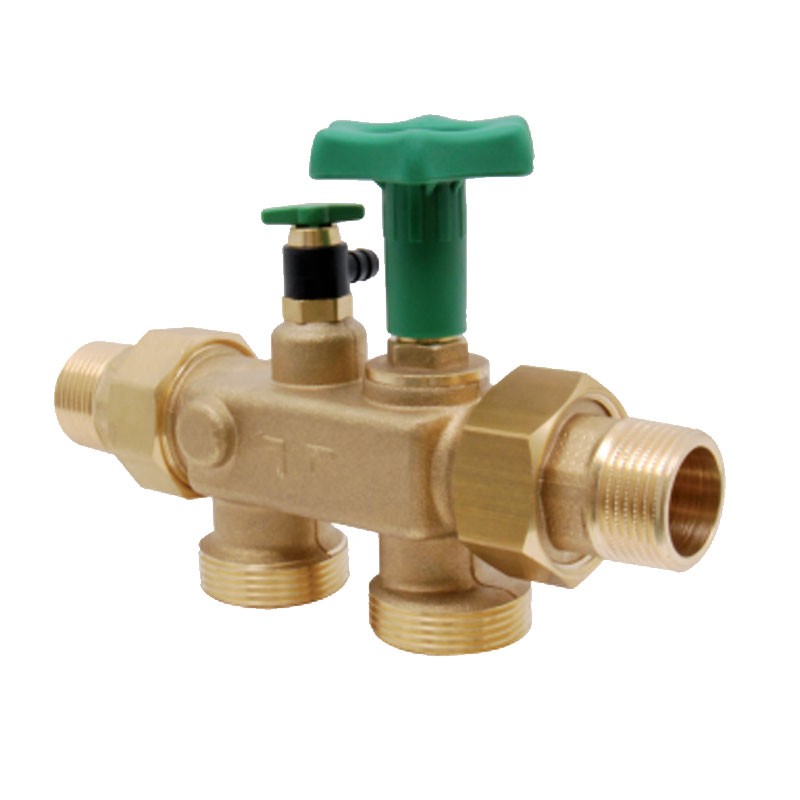

BwT CB MULTIBLOCK X 1" multiple valve for softener connection 12615AA

Brand: Bwt Italia

Cod: BWT 12615AA EAN: 8015994292654

BwT CB MULTIBLOCK X multiple valve is a water supply connection unit used for the installation of water softeners:

Cillit-PARAT
Cillit-NECKAR
Cillit-GENIUS DUO CYBER
CillitPARAT and NECKAR PLUS denitrification softeners
CillitEN DATA denitrifiers as well as CillitAQUA TOTAL devices.

Features:

DN25 connection dimensions
IN-OUT connections to the network 1 Inch Male
IN-OUT connections to the device 1 1/4 Inch Male
Flow rate with p 0.2 bar 2.5 m3/h
Flow rate with p 0.8 bar 5.0 m3/h
Pressure rating max 10 bar
Water temperature min./max 5-30 Degrees
Ambient temperature min./max 5-40 Degrees

BwT CB MULTIBLOCK X 1" multiple valve for softener connection 12615AA

€145.42 Tax included

€145.42

BwT CB MULTIBLOCK X 1" multiple valve for softener connection 12615AA

€145.42
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 10

Altre disponibilità dal produttore

Two-year warranty

Secure Payment

Easy return within 14 days

Purchase with tax breaks

Description

The CB-MULTIBLOCK X consists of a brass assembly complete with tangs and half nozzles for connection to the water supply, fittings for connection, by means of armored hoses, to the equipment The CB-MULTIBLOCK X enables the following functions:

Integral by-pass
Check valve
Deaeration valve
Sample pickup or injection point for metering pumps
Use the MultiblockE Connection Set for connection to the equipment.

Special and basic requirements

Brass assembly equipped with handwheel, sample taking tap, water supply connection fittings with tangs and half spouts, and fittings for connection to the equipment
integral by-pass function (by full rotation of the handwheel) allows maintenance operations to be performed on the equipment without having to interrupt the water supply to the user
integrated check valve to prevent, as required by the standard, the return of water from the utilities.
integrated deaeration valve
sample tap or injection point for metering pumps
materials complying with Ministerial Decree 174/04 and in accordance with Health Ministerial Decree 25/2012
