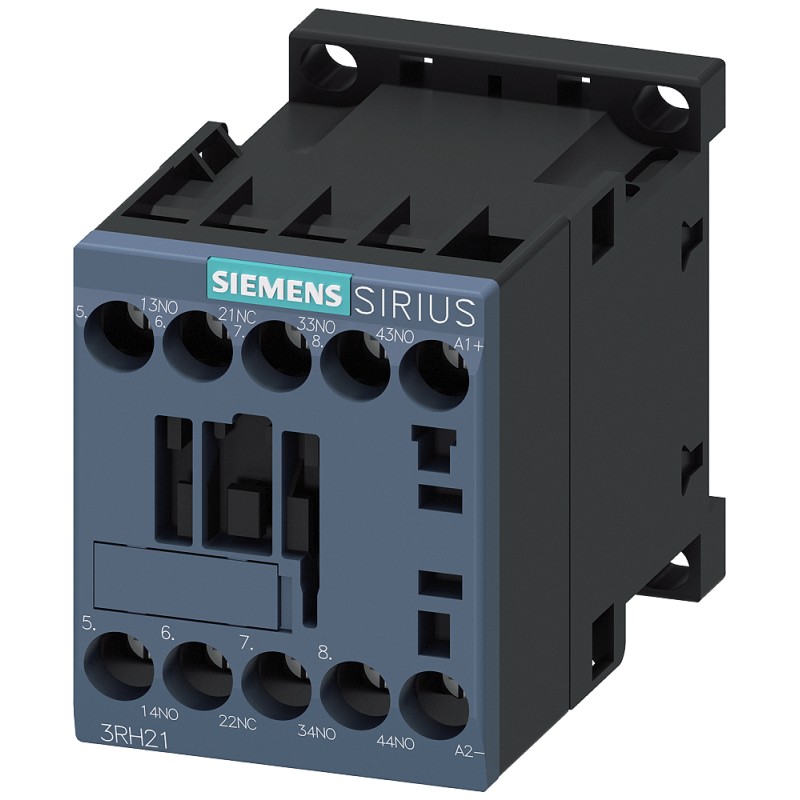

Siemens AUX 3NA+1NC 24VDC 10A contactor relay for S00 3RH21311BB40
SIE 3RH21311BB40
4011209848450
Siemens auxiliary contactor relay, for S00 series with the following characteristics
- Low voltage 24 Vac
- Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
- Rated impulse withstand voltage 6 kV
- Operating current 10A
- Number of NC contacts for auxiliary contacts with instantaneous switching 1
- Number of NO contacts for auxiliary contacts with instantaneous switching 3
Siemens AUX 3NA+1NC 24VDC 10A contactor relay for S00 3RH21311BB40
€37.08
Tax included
€37.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 40
: 5
Pay in installments with Klarna
Features:
- Siemens Series
- Low voltage 24 Vac
- Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
- Rated impulse withstand voltage 6 kV
- Operating current 10A
- Number of NC contacts for auxiliary contacts with instantaneous switching 1
- Number of NO contacts for auxiliary contacts with instantaneous switching 3
- Mechanical life span (switching cycles) of the contactor typ 30,000,000
- Degree of protection on front side IP20
- Mounting position with vertical mounting surface rotatable to +/-180°, with vertical mounting surface tiltable to +/- 22.5° forwards and backwards
- Type of mounting screw and snap-on mounting on 35 mm mounting rail
- Screw clamp connections
- Height 57.5 mm
- Width 45 mm
- Depth 73 mm
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24VAC
- Poles: 4P
- Amps: 10A
