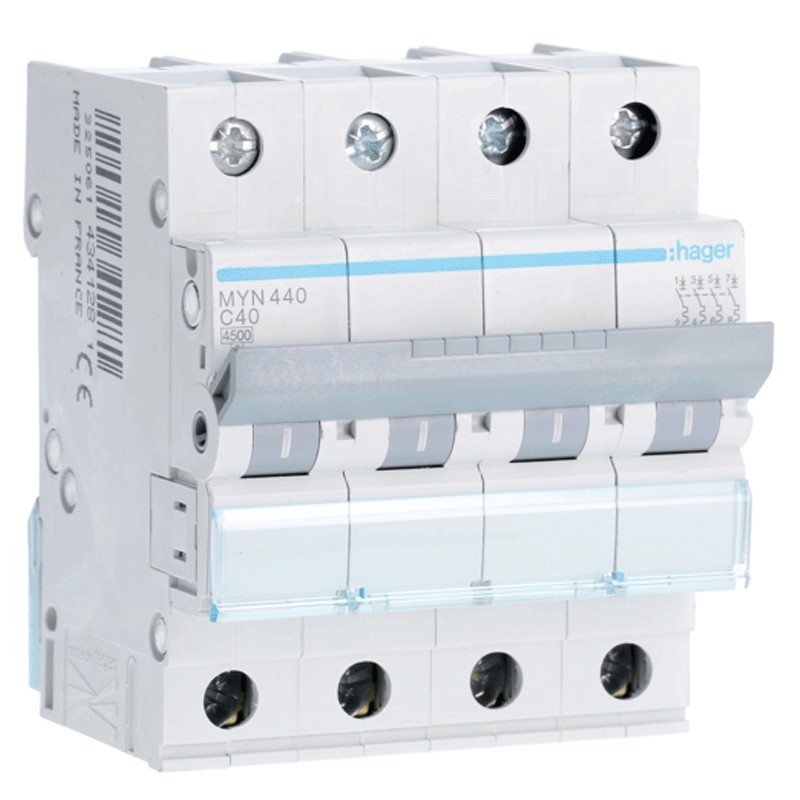

Circuit breaker Hager 4P 40A 4.5 KA C 4 modules MYN440
HAG MYN440
3250614341281
Circuit breaker Hager 4P 40A 4.5 KA C 4 modules MYN440
Circuit breaker Hager 4P 40A 4.5 KA C 4 modules MYN440
€74.61
Tax included
€74.61
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 24
: 1
Pay in installments with Klarna
Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in A: 40 A Poles: 4 P Power rated breaking capacity Icn: 4.5 kA breaking capacity Icu: 6 kA Curve: C Number of modules 17.5 mm: 4 Power loss per pole: 1.3 W short-circuit Capacity of - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Power: 4.5KA
- Amps: 40A
- Circuit Protections: Circuit breakers
