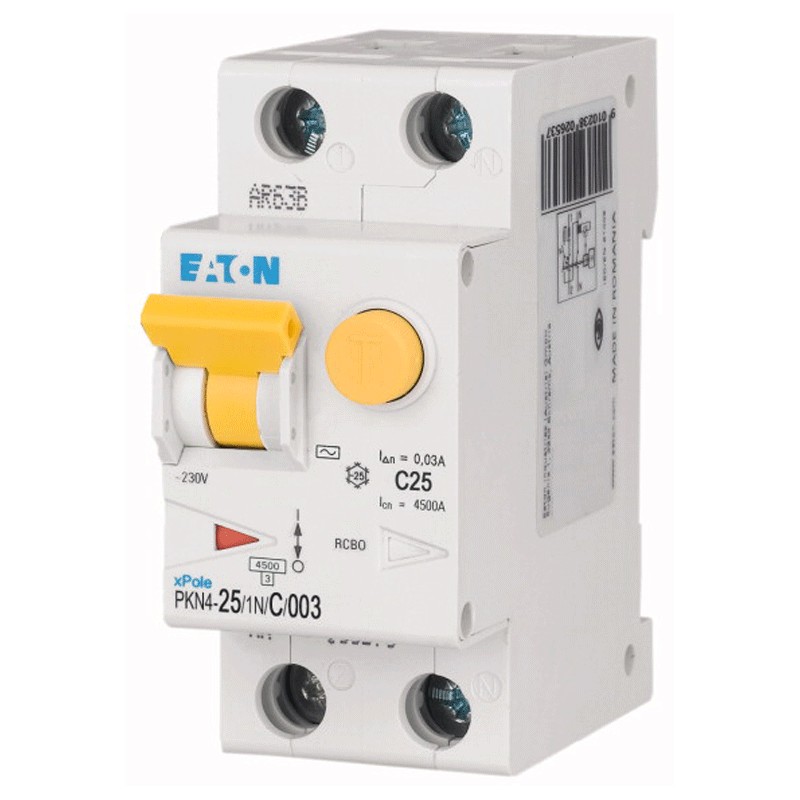

Eaton Residual Current Operated Circuit Breaker 25A 1P+N 30MA type AC 4,5K 237131
EAO 237131
4015082371319
Eaton Residual Current Operated Circuit Breaker, 2 modules, DIN connection (universal for any switchboard on the market), 1P+N, 25 amperes, breaking capacity 4.5kA, rated insulation voltage 440 Vac, rated differential current 30mA, type AC, trip curve C.
Eaton Residual Current Operated Circuit Breaker 25A 1P+N 30MA type AC 4,5K 237131
€23.58
Tax included
€23.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 75
: 12
Further Eaton RCBO combinations:
The circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.
The Residual Current Operated Circuit Breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The Residual Current Operated Circuit Breaker in the electrical system integrates three different protections:
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The AC residual current circuit breaker type tripping is assured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Eaton series
- Rated insulation voltage 240 Vac
- Current In 25A
- Interrupting capacity Icn 4,5kA
- Trip curve C
- AC differential trip characteristic
- Rated differential current 30 mA
- 2 modules
- 1P+N
- Rated frequency 50 Hz
- Recessed depth 69.5 mm
- Degree of protection IP20
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Power:
- 4.5KA
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 25A
- Circuit Protections:
- RCBO
