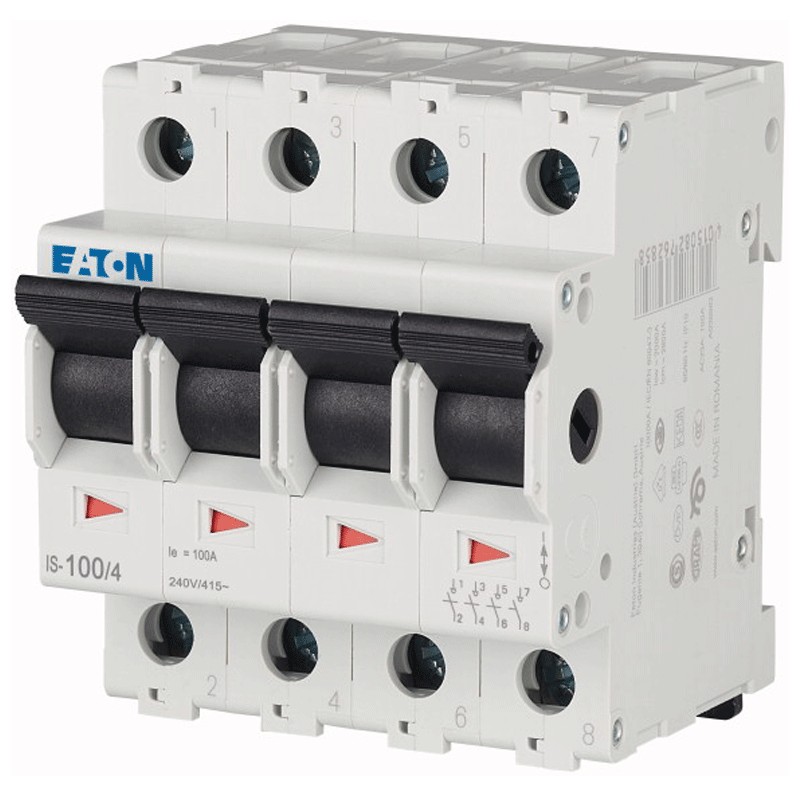

Eaton 100A 4-pole 4-module disconnect switch 276278
EAO 276285
4015082762858
Eaton circuit breaker/disconnect switch, with the following features:
- Circuit breaker with isolation function
- Rated voltage 240 Vac
- Rated voltage 240 Vac
- Supply voltage type AC
- Rated current In 100A
- 4 modules
- 4 poles
- Ideal for industrial applications and high-end functional buildings
- High resistance to contact wear
Eaton 100A 4-pole 4-module disconnect switch 276278
€63.67
Tax included
€63.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 18
: 1
Pay in installments with Klarna
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Features:
- Eaton Series
- Power switch with isolation function
- Rated voltage 240 Vac
- Rated voltage 240 Vac
- Supply voltage type AC
- Rated current In 100A
- 4 modules
- 4 poles
- Ideal for industrial applications and high-end functional buildings
- Ambient operating temperature min -5 °C
- Ambient operating temperature max +40 °C
- Recessed depth 69.5 mm
- Degree of protection IP40
- Short-circuit resistance (Icw) 2 kA
- Snap-on activation
- Black handle
- Terminal cross section 50mm²
- High resistance to contact wear
- Compatible with Xpole busbar using fixed terminal in combination with standard fork busbar
There are no reviews
Data sheet
- Voltage: 240VAC
- Modules: 4
- Poles: 4P
- Amps: 100A
- Circuit Protections: Disconnectors
- Operating voltage: AC
