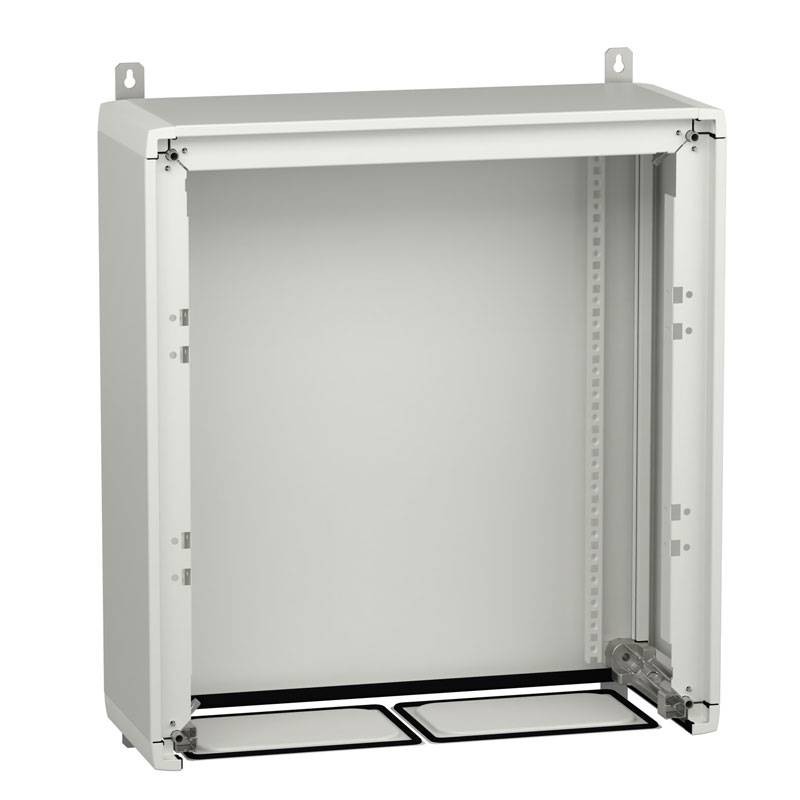

Schneider PrismaSeT G L600mm 11M IP55 Wall-to-Floor Enclosure LVS08303
SNR LVS08303
3606481876515
Schneider PrismaSeT G wall-to-floor enclosure with the following features:
- Range: PrismaSet
- Number of 50mm vertical modules: 11
- Number of 18mm modules per row: 24
- Rated insulation voltage: 1000 V on the rear main busbars complying with IEC 61439-2
- Mains frequency: 50/60 hz
- Rated current: 630 A at 40 °C complying with IEC 61439-2
- Short-circuit current: 50kA
- Rated short-time withstand current: 25 kA 1 s complying with IEC 61439-1
- Rated peak withstand current: 53 kA complying with IEC 61439-1
- Electrical insulation class: Class I
- Material: treated sheet steel

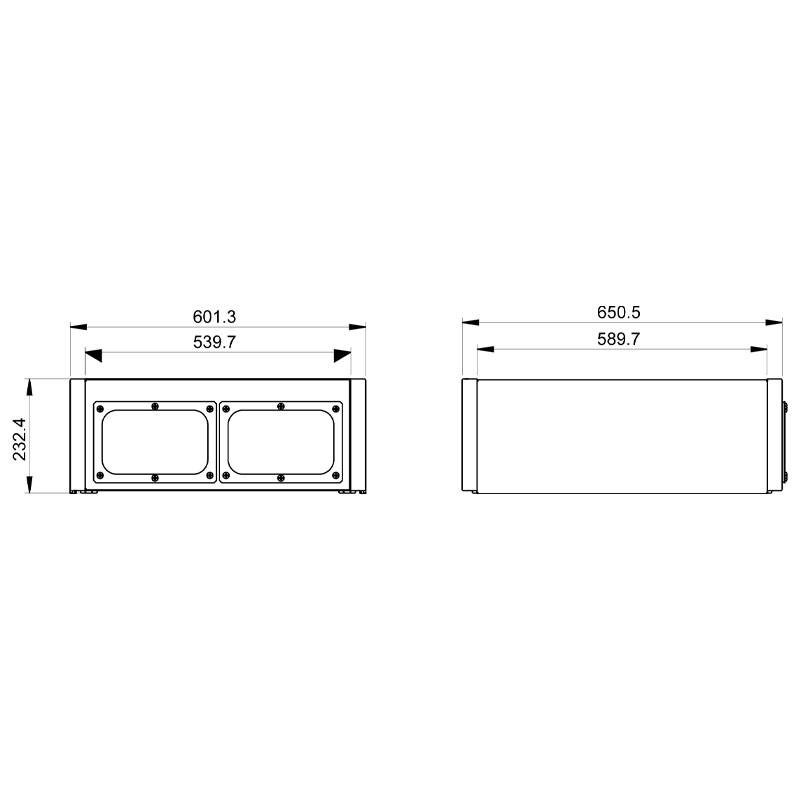

- Width: 575 mm
- Height: 650 mm
- Depth: 260 mm
Schneider PrismaSeT G L600mm 11M IP55 Wall-to-Floor Enclosure LVS08303
€482.08
Tax included
€482.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Features:
- Can be combined side by side and on top of each other
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
- Surface finish: Textured Matte
- Color: White
- Degree of protection: IP55 with door
- Degree of protection: IK10 with door in accordance with EN/IEC 62262
Components included:
- Uprights
- Back plate
- 2 side panels Top plate and bottom plate
- 4 mounting brackets
There are no reviews
Data sheet
- Type: Containers
- Amps: 630A
