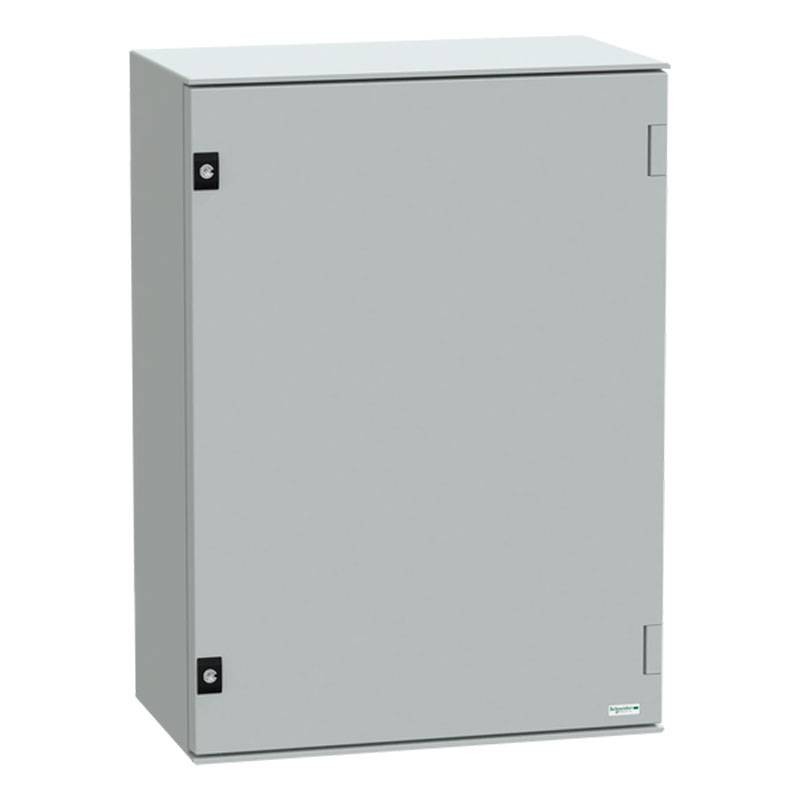

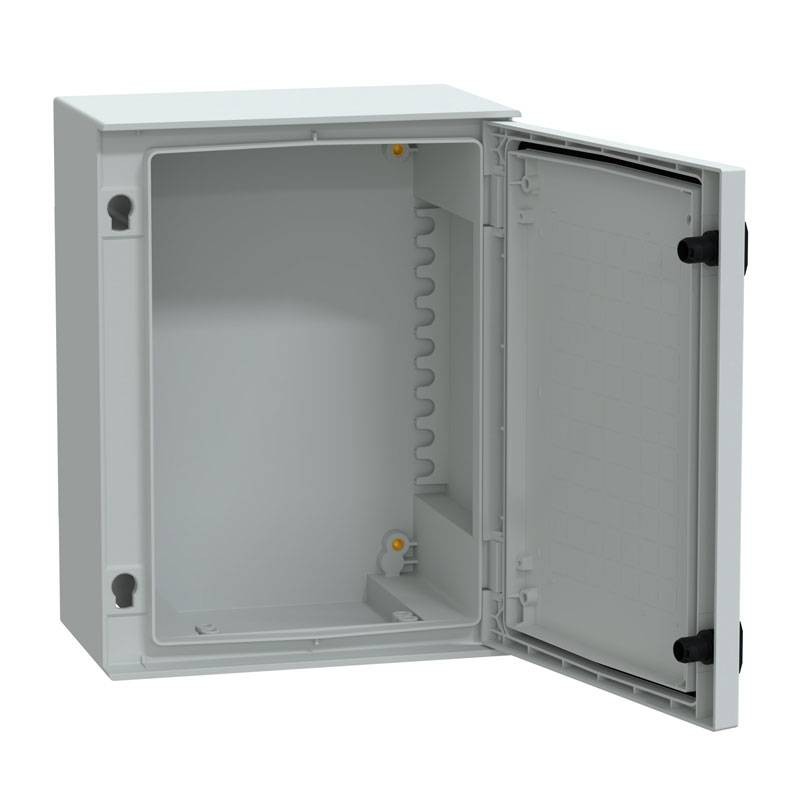

Solid door + plate Schneider PLM 745X535x300 mm polyester NSYPLM75G
SNR NSYPLM75G
3606480776694
Solid door + Schneider Thalassa PLM plate with the following features:
- Pushbutton panel mounting: Wall mounting
- Door type: Simple
- Locking device type: 3mm double bar lock
- Number of locking devices: 2
- Material: fiberglass reinforced polyester
- Color: Gray
Solid door + plate Schneider PLM 745X535x300 mm polyester NSYPLM75G
€238.57
Tax included
€238.57
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
Frequently bought together
Features:
- Thalassa PLM Polyester one-piece wall-mounted cabinet.
- Integrated, one-piece molded roof with notches in the back
- Without mounting plate
- 2 locks (3 mm double bar lock)
- Made of fiberglass reinforced polyester
- Enclosure Type: Multifunction
- Category: Compact cassette
- Accessibility for use: Front
- Removable parts: Door with hinges
- Insulation Class: Class II
- IP degree of protection: IP66
- IK degree of protection: IK10
- Fire resistance: 960 °C
- Operating ambient temperature: -40/+80 °C
- Nominal height: 747 mm
- Nominal width: 536 mm
- Nominal depth: 300 mm
Device composition:
- 1 body
- 1 door
- 2 lock
There are no reviews
Data sheet
- Type: Containers
- Degree of protection: IP66
