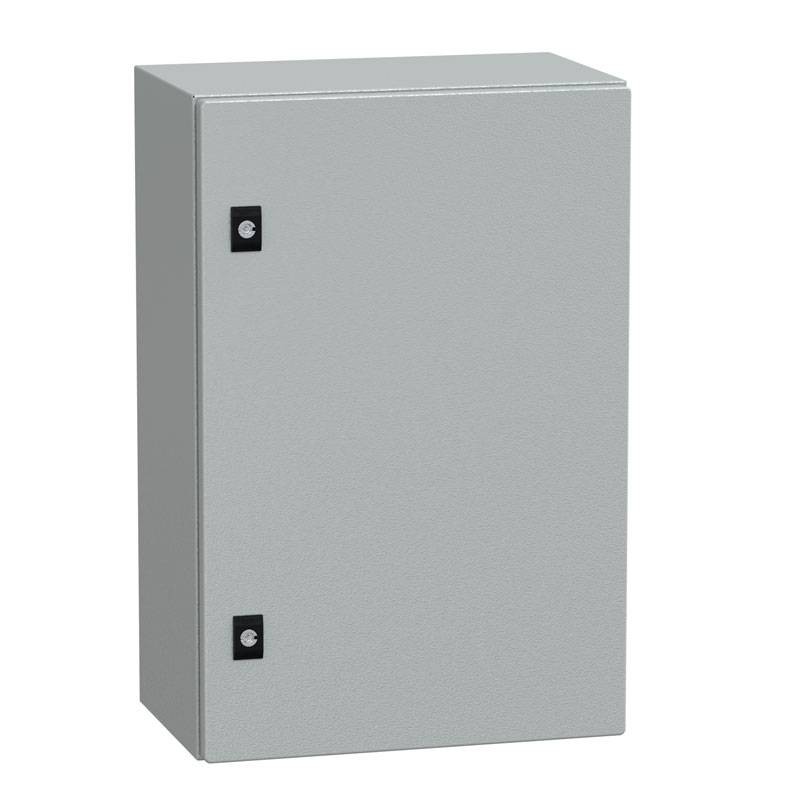

Solid door + plate Schneider CRN 700X500x250mm NSYCRN75250P
SNR NSYCRN75250P
3606480211874
Solid door + Schneider CRN plate with the following features:
- Installation accessory type: wall mounting
- Door type: Simple
- Mounting plate description: Flat
- Number of doors: Front side 1 door
- Door opening: Reversible (120°)
- Locking device type: 3mm double bar lock
- Material: Container: steel
- Mounting plate: galvanized sheet metal: surface finish
- Container: epoxy-polyester powder
Solid door + plate Schneider CRN 700X500x250mm NSYCRN75250P
€191.98
Tax included
€191.98
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Frequently bought together
Advantages:
- Steel box for wall mounting with solid door
- Dimensions: 400 x 300 x 200 mm
- Backside welded with double profile to form a protected sealed area
- Sides made from a single bent section
- 3 mm double bar lock insert
- Made of steel with polyester-based epoxy powder coating finish
- Protection ratings IP66, IK10
- RAL 7035 gray
Features:
- Body type: Side panels made in one piece - Welded on the back with double profile to form a sealed protected zone
- Removable parts: Door with hinges - Cable gland plate With screws - Mounting plate with fastener
- IP degree of protection: IP66 according to IEC 60529
- IK degree of protection: IK10 in accordance with IEC 62262
Dimensions and weight:
- Nominal cassette height: 700 mm
- Nominal cassette width: 500 mm
- Nominal cassette depth: 250 mm
- Weight: 20,292 kg
Device composition:
- 1 body
- 1 gland plate
- 1 door with lock
- 1 mounting plate
There are no reviews
Data sheet
- Type: Containers
- Degree of protection: IP66
