Fror Shielded Flameproof Cable FROHH2R 4G1.5 mmq
9X9 4G1,50B
Fror Shielded Flameproof cable FROHH2R 4G1.5 sq mm with the following characteristics:
- Production diameter: 8.65 mm
- Rated voltage Uo/U: 450/750 V
- Maximum operating temperature: 70°C
- Minimum operating temperature: -15°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 8 times the maximum outer diameter
Sold per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Fror Shielded Flameproof Cable FROHH2R 4G1.5 mmq
€1.67
Tax included
€1.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 836
: 614
Pay in installments with Klarna
Two-year warranty

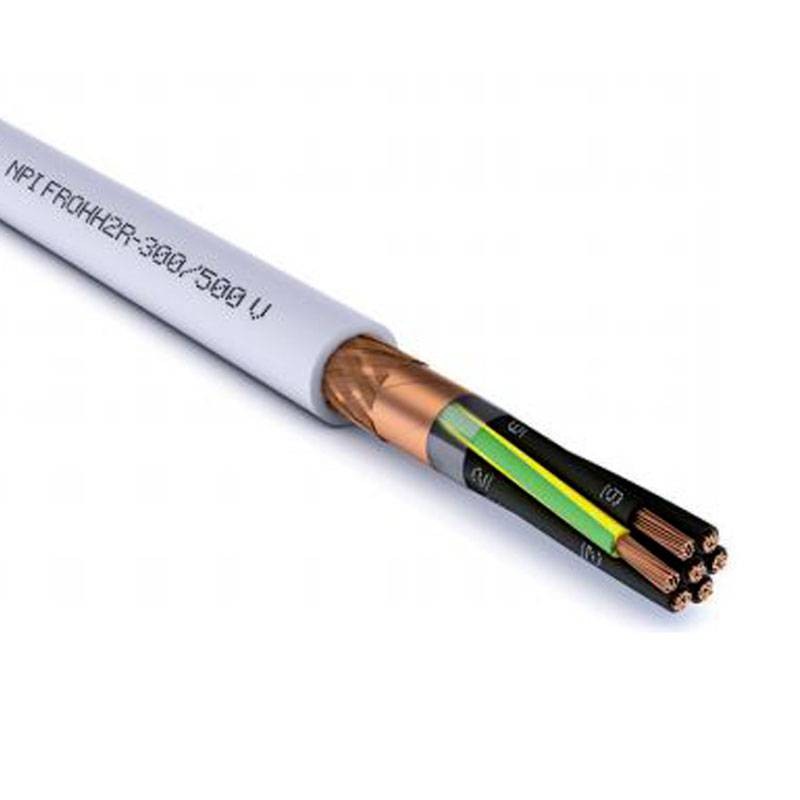

Energy cable, PVC insulated under PVC sheath, fire retardant and low corrosive gas emission with copper braid screen.
Characteristics:
- Conductor: Flexible annealed red copper cord, class 5
- Insulation: R2-quality PVC compound
- Screen: Polyester tape and braided shield of red copper wires
- Outer sheath: TM2-quality PVC compound
- Sheath color: gray
- Rated Uo/U voltage: 450/750 V
- Maximum operating temperature: 70°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Minimum installation temperature: 0°C
- Maximum short-circuit temperature: 160°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 8 times the maximum outer diameter
Conditions of use: Cable for use in applications where a certain degree of protection from electromagnetic interference is required. Suitable for fixed laying in places with fire hazards. For indoor use in dry or wet rooms, outdoor for intermittent or temporary use. Not permitted for underground installation even if protected.
There are no reviews
Data sheet
- Colour: Grey
- Section: 1.5mmq
- With yellow/green: No
- Number of cables: 4
