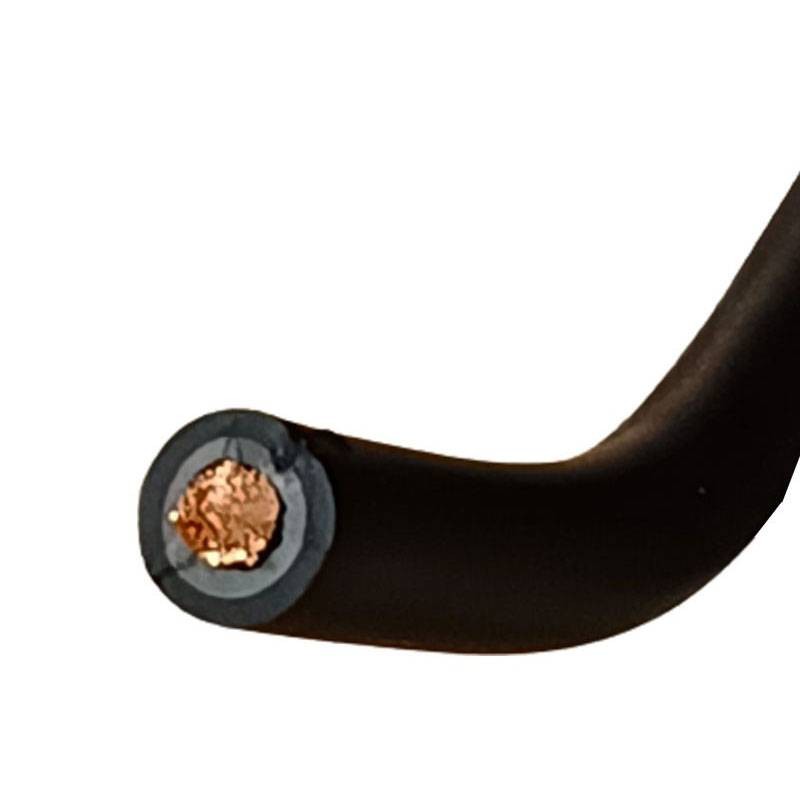

Sheathed Polychloroprene Cable 12G1.5 H07RN-F Black

Brand: Cavi

Cod: 9X9 H07RNF12G1,5 EAN:

Sheathed cable of polychloroprene 12G1.5 H07RN-F black with the following characteristics:

Conductor diameter: 1.5 mm
Insulation thickness: 0.8 mm
Sheath thickness: 2.9 mm
Outer diameter: 22.4 mm
Maximum electrical resistance at 20°C: 13.30 ohm/km

Sold per meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable

Sheathed Polychloroprene Cable 12G1.5 H07RN-F Black

€5.92 Tax included

€5.92

Sheathed Polychloroprene Cable 12G1.5 H07RN-F Black

€5.92
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 979

: 462

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Flexible power cable, rubber insulated with polychloroprene (neoprene) sheathing. Good resistance to mechanical stress, good resistance to mineral oils and greases, chemical and weathering agents. Flame retardant.

Features:

Rated voltage Uo/U: 450/750 V AC (600/1000 V DC).
Maximum operating temperature: 60°C (up to 85° C for fixed and protected installation)
Minimum operating temperature: -40°C (in the absence of mechanical stress)
Minimum installation temperature: -25°C
Maximum short-circuit temperature: 200°C
Maximum tensile stress (recommended): 15 N/mm2 section of copper for mobile laying; 50 N/mm2 section of copper for fixed laying
Minimum bending radius: 6 times the cable diameter for mobile laying; 4 times the cable diameter for fixed laying

Conditions of use: For installation in dry or damp, or wet rooms, in free air, in workshops with explosive atmosphere. For connections subject to average mechanical stresses: e.g., industrial or agricultural workshop equipment, large kettles, heating plates, portable lamps, electric tools such as drills, circular saws, household electric tools as well as transportable motors or generators at construction sites or agricultural installations, etc.; also for fixed installations e.g., on floors and shelves of temporary construction sites and barrack housings; for connections of construction elements of lifting apparatus, machines, etc. Use is permitted up to 1000 V in case of protected fixed installation (within pipes or equipment) as well as for rotor connections of motors for lifting apparatus. Underground laying is permissible only with protection from damage hazards. For laying and installation operations, it is recommended not to exceed the tensile stress of 5 k g x mm² of the sum of the conductor cross sections. Use is not recommended for connections of equipment or machinery subject to continuous movement for which festoon feeding or by means of cable winding drums is required.
