Shielded cable for data transmission 6X0.25mmq2 100 meters LY02506

Cavi
BDS LY02506

Shielded cable for data transmission and instrumentation 6X0.25mmq2, 100 meter coil (price quoted per meter) complying with the requirements of the Construction Products Regulation (CPR EU 305/11), with the objective of limiting the production and spread of fire and smoke.

Shielded cable for data transmission in electronics and computers, for signaling, measurement, command and control systems and in general where efficient protection from external electromagnetic interference and small dimensions are required.

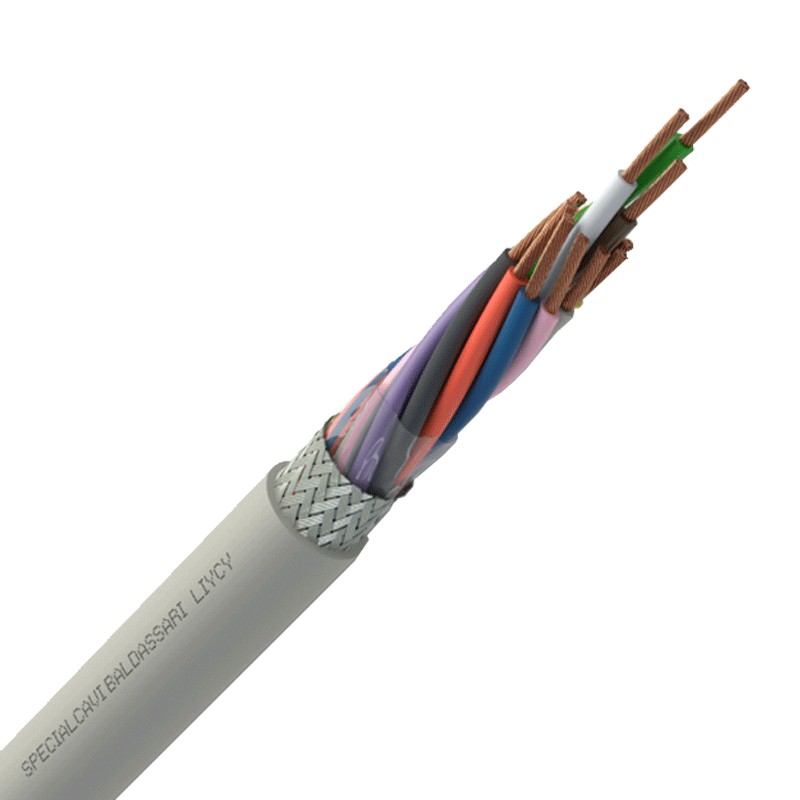

Illustrative photo.

  • Outer diameter 5.8 mm
  • Cable weight kg/km 55
  • Resistance ma x conductor at 20 Degrees: 75 Ohm/km.

Request info about this product

Shielded cable for data transmission 6X0.25mmq2 100 meters LY02506

€0.71 Tax included
€0.71

Shielded cable for data transmission 6X0.25mmq2 100 meters LY02506

The minimum purchase order quantity for the product is 100.

€0.71
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 100
Altre disponibilità dal produttore
qty

Shielded cable for data transmission 6X0.25mmq2 100 meters LY02506

€0.71

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Thursday, 13 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Suitable for applications outside the scope of the CPR regulation and for installations within an enclosed environment, except in cases with specific fire ignition/propagation risks where the use of cables with superior fire performance (at least Cca-s3,d1,a3) is recommended. This cable, where permitted, can always be installed in coexistence with 450/750V energy cables and, in addition, if used to supply category 0 systems (rated voltage less than or equal to 50V, if AC, or 120V, if DC or non-corrugated), can also be installed in coexistence with 0.6/1kV energy cables supplying loads having rated voltage 230/400V.

Underground installation, even if protected, is not permitted.

Normative references:

  • CEI 20-29 IEC 60228
  • CEI 20-11 EN 50363
  • IEC 60332-3-24 Cat.C IEC 60332-3-24 Cat.C
  • CEI UNEL 36762.

Fire reaction class:

  • EN 50575:2016 Dca - s3, d0, a3

Temperatures:

  • Minimum operating temperature: -15°C
  • Maximum operating temperature: +70°C
  • Maximum short-circuit temperature: +160°C.

Construction characteristics:

  • Core: Flexible red copper conductor, class 5
  • Insulation: PVC-based compound, R2 quality
  • Cordage: Twisted/concentrically corded cores
  • Wrapping and protection: Polyester tape on total
  • Shielding: Tinned copper braid on the total
  • Outer sheathing: PVC-based compound, Rz quality
  • Colors: Core colors: DIN 47100
  • Outer sheath color: Gray (based on RAL 7035).

Core operating voltage:

  • 300/500V cross section ? 0.75 mm2
  • 450/750V cross section ? 1.00 mm2.

There are no reviews

Data sheet

Colour:
Grey
Section:
0.25mmq
Number of cables:
6
