Hiltron Protec 8 Zone GSM burglar alarm kit siren detectors readers and keys KPROTEC8GSM
C1A KPROTEC8GSM
8056450411806

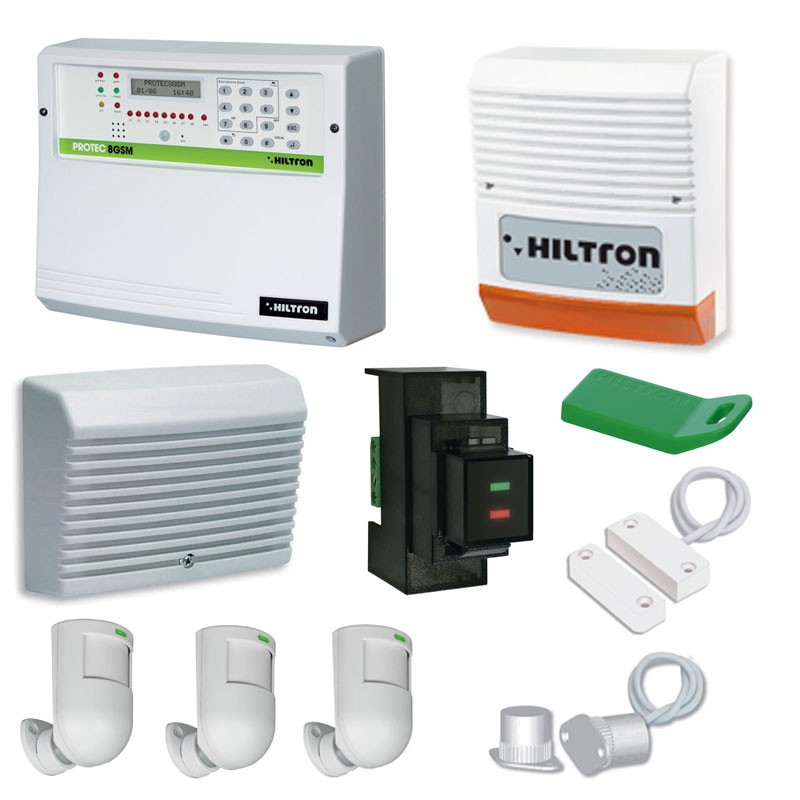

Hiltron KPROTEC8GSM burglar alarm kit consisting of:
- 1 piece 8 zones central unit with built-in GSM+IR dialer (art.PROTEC8GSM)
- 1 piece self-powered outdoor siren (art.SA310)
- 1 piece electronic piezo siren (item SP31)
- 1 piece cylindrical flush-mounted contact (item C56)
- 1 piece REED magnetic contact (item C58)
- 3 pieces dual technology detectors (art.DG12)
- 1 piece LF proximity reader with zone partialization on RS485 for PROTEC8GSM and TM800GSM (art.DX200)
- 1 piece green proximity key for DX200-DX300 readers
Hiltron Protec 8 Zone GSM burglar alarm kit siren detectors readers and keys KPROTEC8GSM
€553.30
Tax included
€553.30
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 79
: 5
Pay in installments with Klarna
Frequently bought together
KIT component specifications:
1 piece 8 zone central unit with built-in GSM+IR dialer (art.PROTEC8GSM):
- Built-in GSM dialer: zone identification, remote self-exclusion
- GSM module: Quadriband
- Control LEDs: network presence, output time, alarm status ,zone status, alarm memory
- Protection zones: 8
- Built-in detector type: (can be used simply for backlighting) of display and keys, or as anti-sabotage)
- Voice guidance menu: zone identification, simple remote self-exclusion
- Pre recorded voice messages: for network presence status , anti-theft status
- Common voice message: customizable
- Control possibility: via remote console
- Auto inhibition of each zone: (if not reset) after generating an alarm
- Adjustable alarm duration: 180 - 600 seconds
- Maximum deliverable current: 2.6 amps (code TM35SW)
- Rated supply voltage: 230V
- Battery compartment: (code B12V7A)
- Degree of protection IP30
- Safety rating 1
- Environmental class 2
- Dimensions: W 280mm - H 230mm - D 96mm
1 piece self-powered outdoor siren (item SA310):
- Rated supply voltage 12V
- Frequency 1237 Hz
- Power consumption 10mA
- Maximum power consumption 1.9A
- Pressure level 100dB(A) @ 3mt
- Self-powered
- Suitable for outdoor use
- Weight 1.9kg
- Dimensions 28 × 13.6 × 29.3 cm
- Operation test: upon battery connection
- Tamper protection: anti-opening and anti-tear
- Protection fuse: power supply and bulb
- Inner container: epoxy powder coated steel sheet
- Container ABS
- Screws stainless steel
- Color white
- Battery compartment (code B12V2A)
- Operating temperature: -25/+55°C
- Degree of protection IP34
- Dimensions: (W) 205 mm - (H) 246 mm - (D) 103 mm
1 piece electronic piezo siren (item SP31):
- Rated supply voltage 12V
- Maximum power consumption 140 mA
- Pressure level 99dB(A) @ 3mt
- Frequency 3585 Hz
- Reverse polarity protection
- Tamper protection: anti-opening and anti-tear
- Container ABS
- Operating temperature: -5°C/ +40°C
- Dimensions: 14 × 7 × 18 cm
- Dimensions: W 135 mm x H 95mm x D 43mm
- Weight 0.260 kg
1 piece cylindrical recessed contact (item C56):
- 2-wire output terminals
- Max. voltage 30V
- Current max 500 mA
- Type of recessed contact
- Installation recessed on armored doors
- Weight 0.025 kg
- Operating distance 12 mm
- NC alarm output
- Cable length 25 cm
- Color white
- Container Nylon
- Safety grade 1
- Environmental class 2
- Dimensions: W 36mm x H 22mm x D 19mm
1 piece REED magnetic contact (item C58):
- Installation on doors and windows
- Output terminals 2 wires
- Max. voltage 30V
- Current max 500 mA
- Cable length 25cm
- NC alarm output
- Operating distance 18mm
- Container Nylon
- Dimensions: (W16mm) x (H9mm) x Dimensions (D40mm)
- External contact type
- Weight: 0.021kg
- Color white
- Safety grade 1
- Environmental class 2
3 pieces dual technology detectors (art.DG12):
- Dual-element digital sensor (Digipyro™)
- 10.525Gh microwave sensor
- Complete with anti-disorientation joint
- Sensitivity adjustable by trimmer
- Tamper protection
- Anti-tamper function
- Anti-masking function
- High immunity to RF (over 30Vm)
- Rated supply voltage 12V
- Maximum power consumption 18mA
- Coverage: 12 meters
- Lens beams 23 (on 3 horizontal levels)
- Frontal coverage angle (PIR) H: 120°; V: 60°
- Microwave front coverage angle H: 80°; V: 32°
- Signaling LEDs
- Solid-state relay output NC 100mA, 50Vdc max
- Initial stabilization time 30"
- Security grade: 1
- Environmental class: 2
- Dimensions (WxHxD) 59x99x60mm
- Conforms to IEC EN 50131-1 standards
OPERATION: The DG12 works in "dual technology," which means that only if both technologies (Infrared and Microwave) detect an actual intrusion is the alarm given. This avoids false alarms due to the activation of only the Infrared sensor (sometimes caused, e.g., by the sun's rays) or only the Microwave sensor (sometimes caused, e.g., by moving objects).
ANTI-MASKING: The DG12 in the event of a prolonged alarm of one of the two technologies, and in the absence of detection of the other, activates a continuous alarm state, signaled by the flashing red LED and the open zone contact, a state that persists until both technologies resume proper operation. In this way, if you mask, for example, the infrared sensor by thermally isolating it, but continue to repeatedly alarm the microwave sensor, the detector goes into a continuous alarm state that triggers the burglar alarm control panel.
ANTIMANOMISSION: If the DG12 detects a presence very close to the detector (about 40cm), it goes into a continuous alarm state, signaled by the flashing of the red LED and the opening of the zone contact. Again, if after a few seconds, both technologies resume detecting presence at a greater distance, and thus are found to be normally operating, the detector resumes its normal operation.
INSTALLATION:
- Remove the electronic circuit from the case by levering it sideways with a tool and hook the joint to the base of the case after passing it through the retaining ring.
- Use the extension for the joint in case of ceiling mounting.
- Cover the unused hole on the base of the with the supplied mat.
- Attach the base of the joint to a smooth, level surface that is not subject to vibration, covering the hole for the electrical cables to pass through for connection to the control unit, using the plugs provided.
- Pass the electrical cables through the hole in the knuckle and attach the fastening ring to the base.
- Once installed and oriented in the desired position, you will be able to lock the detector by fully rotating the locking ring.
- Reposition the circuit to the base of the enclosure and make the electrical connections.
- It is possible to mount the detector at an angle (in this case, do not use the joint, but drill two holes on the container for fixing on the sides.
- Do not orient the detector toward objects that could produce rapid temperature changes such as radiators, electric radiators, air conditioners, open flames, etc.
- Also avoid installation near them.
- Do not partially or completely obscure the detector's field of view
1 piece proximity key for DX200-DX300 readers, green color: Hiltron proximity key for DX200-DX300 readers, green color. Dimensions: L19mm - H44mm - D10mm.
There are no reviews
Data sheet
- Type: Kit Anti-Theft
- System: With Wires
