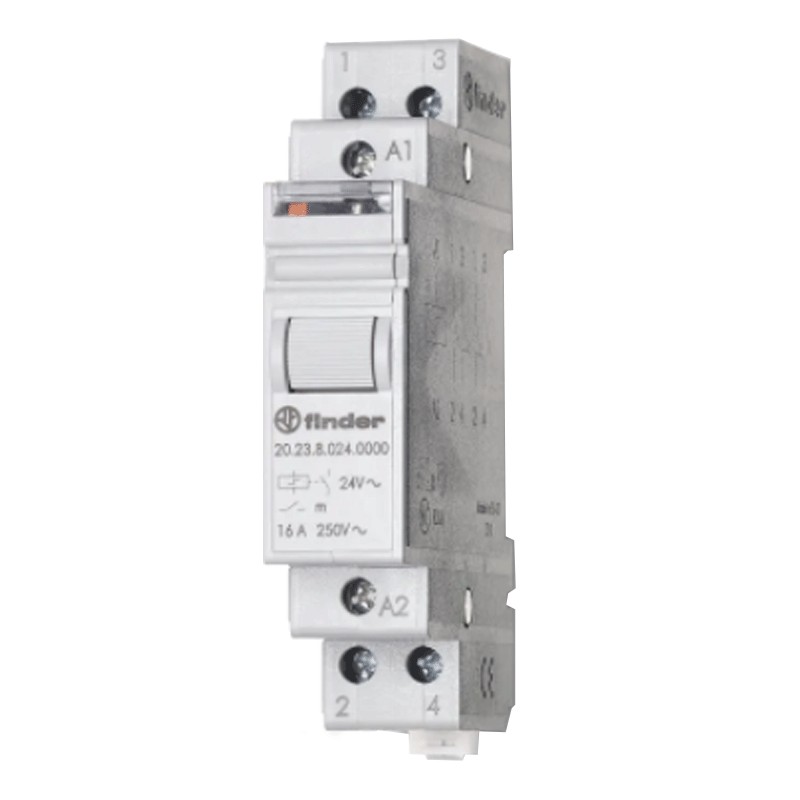

Finder impulse relay 1 module 1NC+1NO coil 24V 202380240000
FIN 202380240000
8012823237121
Modular impulse relay Finder Type 20.23, with the following features:
- Rated supply voltage (50/60 Hz) in AC 8 - 12 - 24 - 48 - 110 - 120 - 230 - 240V, in DC 12 - 24 - 48 - 110V
- Nominal voltage/ Max switching voltage 250/400V AC
- Contact configuration: 1 NO + 1 NC
- Rated power AC/DC VA (50 Hz) 6.5/5VA (50 Hz)/W
- Nominal current/ Max instantaneous current 16/30
- Rated load in AC1:4000 VA
- Rated load in AC15 (230 V AC) 750VA
Finder impulse relay 1 module 1NC+1NO coil 24V 202380240000
€26.40
Tax included
€26.40
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 3
Pay in installments with Klarna
Modular impulse relay Type 20.23, 16A, 2-pole switch 1 NO + 1 NC, 35 mm rail mounting (EN 60715).
Features:
- Finder series
- 35 mm rail mounting
- Minimum switching load 1000 (10/10) mW (V/mA)
- Standard contact material AgSnO2
- Operating range V AC (0.85...1.1)UN (50 Hz)/(0.9...1.1)UN (60 Hz), DC (0.9...1.1)UN
- Mechanical endurance AC/DC 300 - 10 cycles
- Electrical endurance at rated load in AC1 100 - 10 cycles
- Min./Max. switching pulse duration 0.1 s/1 h (acc. to EN 60669)
- Insulation between coil and contacts (1.2/50 μs) 4kV
- Ambient temperature: -40°C...+40°C
- Degree of protection: IP20
Lamp capacity:
- incandescent/halogen 230V 2000W
- fluorescent with electronic ballast 1000W
- fluorescent with rephased electromagnetic ballast 750W
- CFL 400W
- LED 230V 400W
- halogen or BT LED with 400W electronic transformer
- halogen or BT LED with electromagnetic transformer 800W
Advantages:
- One module width 17.4 mm
- Test button and mechanical indicator
- 7 sequences available
- AC or DC coil
- Identification card
- Connection with illuminated pushbuttons possible via adapter 026.00
- Cadmium-free contacts
There are no reviews
Data sheet
- Type: Relays
