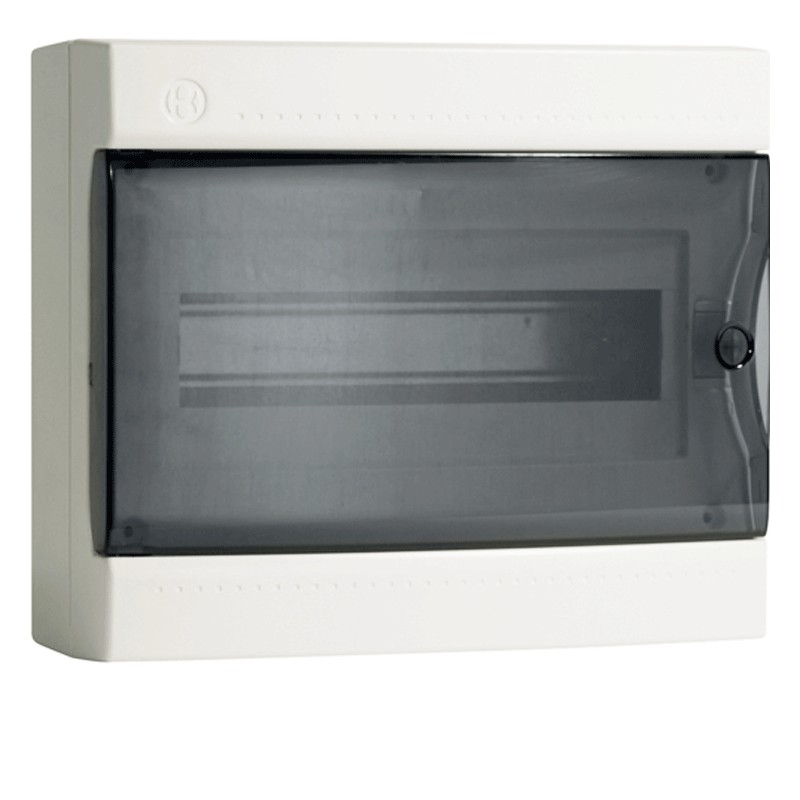

Bocchiotti switchboard with door 12 modules IP40 B04084
IBO B04084
8015892040845
Switchboard with door Bocchiotti, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 12 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
Bocchiotti switchboard with door 12 modules IP40 B04084
€26.36
Tax included
€26.36
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 114
: 42
Pay in installments with Klarna
Features:
- Bocchiotti Series
- Rated current 125 A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 12 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
- Protruding fixing method
- Door colour smoky grey
- Switchboard colour white cream RAL 9001
- Material plastic
- Depth 113 mm
- Internal depth 48 mm
- Height 250 mm
- Width 300 mm
- Insulation protection class II
- Degree of resistance to glow wire according to EN 60695-2-11: 960°C
- Operating temperature -25...60 °C
Prodotto molto rispondente alle aspettative
conforme alla descrizione, nulla da aggiungere
Data sheet
- Type: Wall
- Modules: 12
- Degree of protection: IP40
- Model: With door
