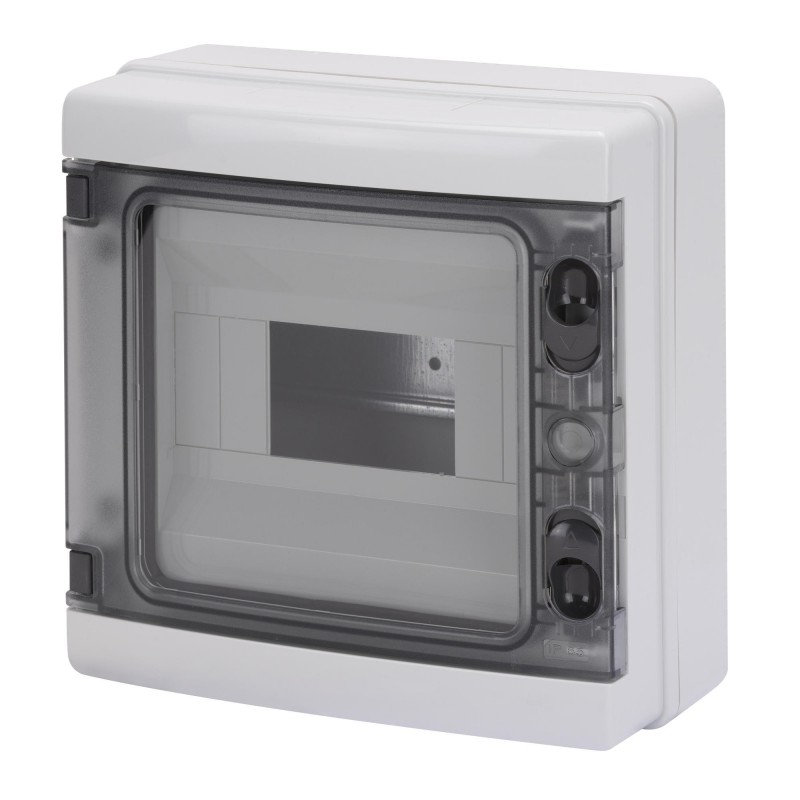

Gewiss wall-mounted switchboard 8M IP65 GW40102
GEW GW40102
8011564061514
Gewiss smooth wall switchboard, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 8 modules
- IP65 degree of protection (protection against dust and water splashes)
- Prepared for housing terminal blocks
Gewiss wall-mounted switchboard 8M IP65 GW40102
€21.01
Tax included
€21.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 687
: 60
Pay in installments with Klarna
Features:
- Gewiss series
- Wall installation with DIN bar (universal connection that allows you to hook any switch with DIN connection even of different brand)
- 8 modules
- IP65 degree of protection (protection against dust and water splashes)
- Prepared for housing terminal blocks
- Insulation class II (according to IEC 61140)
- Door colour Transparent smoke
- Operating temperature -25 +60 °C
- Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49
- Colour grey RAL 7035
- Power dissipation 16W
- Rated voltage 400V
- Rated insulation voltage 750V
- Rated current 125A
- Type Material: Halogen free according to EN 60754-2 standard
- External dimensions BxHxP (mm) 215x210x100
- Shock resistance IK09
- Thermopressure with ball 70 °C
Bonne qualité au bon prix , je recommande
Servizio eccellente, cortesia, disponibilità e velocità nei tempi di consegna. Consigliatissimo.
Servizio efficiente e rapidissimo.
Data sheet
- Type: Wall
- Modules: 8
- Degree of protection: IP65
- Model: With door
